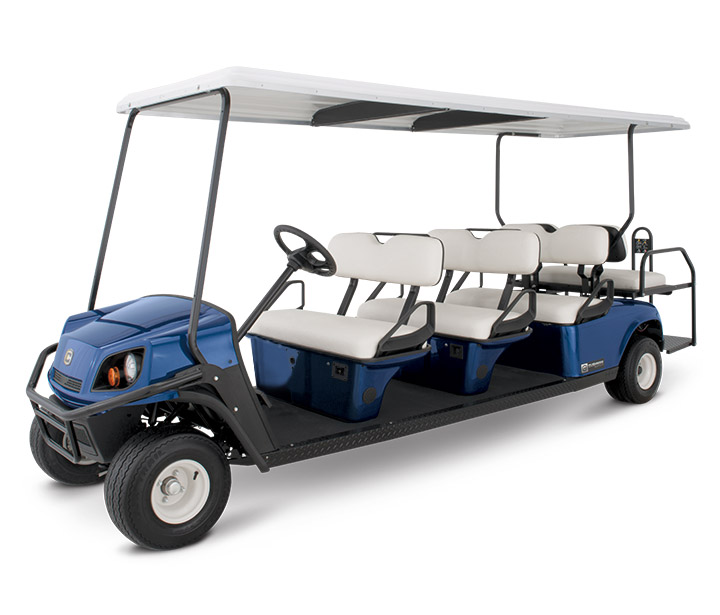

Overview Cushman Shuttle 8
Designed for safety and comfort, the Shuttle™ 8 personnel transport vehicle delivers all the space you need. Features like a large canopy, ergonomically-designed seating, and dependable powertrain options keep guests and workers happy.
Model Table
| Shuttle 8 EFI Gas | Shuttle 8 Electric | |
|---|---|---|
| Body & Finish | Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear) | Injection Molded TPO |
| Standard Color | Patriot Blue | Ivory |
| Power Source | 4-Cycle, 24.5 ci (401cc) | 72V AC |
| Valve Train | Single Cylinder OHV | – |
| Horsepower (KW) | 13.5 hp (10.1 kW) | 22.4 hp (16.7 kW) |
| Electrical System | – | 72V |
| Battery (Qty/Type) | Starter/Generator. Solid State Regulator | Six, 12V Deep Cycle |
| Battery Charger | One, 12V Maintenance Free | 1000 Watt, 72V, 120/230V VAC UL Listed |
| Air Cleaner | Replaceable Dry Cartridge | – |
| Lubrication | Pressurized Oil System | – |
| Oil Filter | Spin-On | – |
| Cooling System | Air Cooled | – |
| Fuel Capacity | 5.8 Gallon (22.0 L) Tank | – |
| Speed Controller | – | 350 Amp AC |
| Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| Gear Selection | Forward – Reverse | Dash-Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 11.47:1 (Forward) 14.35:1 (Reverse) | 17:1 |
| Weight w/o Batteries | – | 1203 lb (546 kg) |
| Curb Weight | 1265 lb (574 kg) | 1695 lb (769 kg) |
| Vehicle Load Capacity | 1600 lb (727 kg) | 1600 lb (726 kg) |
| Outside Clearance Circle | – | 33 ft (10 m) |
| Speed | 16 mph +/- 0.5 mph (26 kph +/-0.8 kph) | High Speed 16.5 mph ± 0.5 mph (26.4 kph ± 0.8 kph), Low Speed 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) |
| Service Brake | 4-Wheel Hydraulic Brakes Front Disk, Rear Drum | 4-Wheel Hydraulic Brakes Front Disk, Rear Drum, Regenerative braking |
| Parking Brake | Self-Compensating, Single-Point Engagement | Self-compensating, single point engagement; Floor Mounted Manual Set/Release w/Warning Buzzer |
| Tires | 18 x 8.50 – 8 (4 Ply Rated) | 18 x 8.90 – 8 (8 Ply Rated) |
| Seating Capacity: | 8-Person |
|---|---|
| Vehicle Load Capacity: | 1600 lb (727 kg) |
| Cargo Deck Capacity: | 400 lb (181 kg) |
| Curb Weight: | 1265 lb (574 kg) |
| Overall Height: | 45.5 in (116 cm) (w/o Roof) 76.0 in (193 cm) (w/ Struts & Roof) |
| Overall Length: | 167.5 in (425 cm) |
| Standard Color: | Patriot Blue |
| Oil Filter: | Spin-On |
| Electrical System: | - |
| Power Source: | 4-Cycle, 24.5 ci (401cc) |
| Fuel Capacity: | 5.8 Gallon (22.0 L) Tank |
| Steering: | Self-Compensating Rack & Pinion |
| Valve Train: | Single Cylinder OHV |
| Lubrication: | Pressurized Oil System |
| Air Cleaner: | Replaceable Dry Cartridge |
| Cooling System: | Air Cooled |
| Rear Axle Ratio: | 11.47:1 (Forward) 14.35:1 (Reverse) |
| Frame: | Welded Steel w/ DuraShield™ Powder Coat |
| Transaxle: | Differential w/ Helical Gears |
| Body & Finish: | Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear) |
| Wheel Track: | 36.0 in (91 cm) Front 38.0 in (97 cm) Rear |
| Gear Selection: | Forward - Reverse |
| Suspension: | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
| Wheel Base: | 123.4 in (313 cm) |
| Speed: | 16 mph +/- 0.5 mph (26 kph +/-0.8 kph) |
| Overall Width: | 49.5 in (126 cm) |
| Key or Pedal Start: | Pedal |
| Horsepower (KW): | 13.5 hp (10.1 kW) |
| Battery Charger: | One, 12V Maintenance Free |
| Parking Brake: | Self-Compensating, Single-Point Engagement |
| Battery (Qty/Type): | Starter/Generator. Solid State Regulator |
| Service Brake: | 4-Wheel Hydraulic Brakes Front Disk, Rear Drum |
| Drive Train: | Continuously Variable Transmission (CVT) |
| Tires: | 18 x 8.50 - 8 (4 Ply Rated) |
| Ground Clearance: | 4.3 in (11 cm) |
Features
- 1,600-lb Vehicle Load Capacity
- 72V Electric Drivetrain
- 8-Passenger Seating
- 13.5-hp EFI Gas Engine
