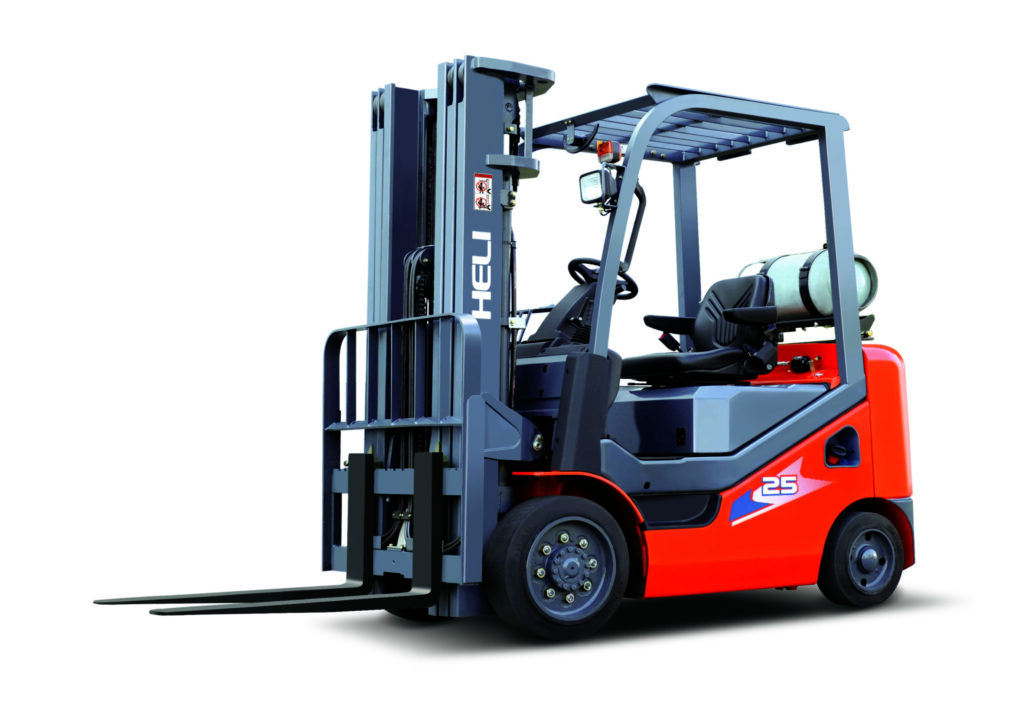

H3C SERIES CPYD20CS – LPG FORKLIFT CUSHION TIRE
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
| IDENTIFICATION- Series: | H3C Series |
|---|---|
| IDENTIFICATION- Model: | CPYD20CS |
| SPECIFICATIONS - Rated capacity (lbs): | 4000 |
| SPECIFICATIONS - Load Center (in): | 24 |
| DIMENSIONS - Overall height (overhead guard) (in): | 82.7 |
| DIMENSIONS - Overall length (with fork/without fork) (in): | 122/86 |
| DIMENSIONS - Overall width (single tire) (in): | 37.6 |
| DIMENSIONS - Min. Turning Radius (exterior) (A single tire is the same as double tires) (in): | 71.7 |
| WEIGHT - Total Weight (lbs): | 7231 |
| WHEELS, CHASSIS - Tire size (front/rear) (in): | 18x6x12.125/14x5x10 |
| PERFORMANCE - Max. traveling speed loaded/unloaded (mph): | 9.9/9.9 |
| PERFORMANCE - Engine mode: | Kubota WG2503 |
| PERFORMANCE - Engine rated power HP/rpm: | LPG: 58.3/2600 |
| PERFORMANCE - Engine rated torque (lb.ft)/rpm: | LPG: 128.1/1400 |
| PERFORMANCE - Engine cylinder number: | 4 |
| PERFORMANCE - Piston displacement (L): | 2.491 |
| PERFORMANCE - Note: | Option: Dual Fuel |
