H3C SERIES CPYD18C – LPG FORKLIFT PNEUMATIC TIRE

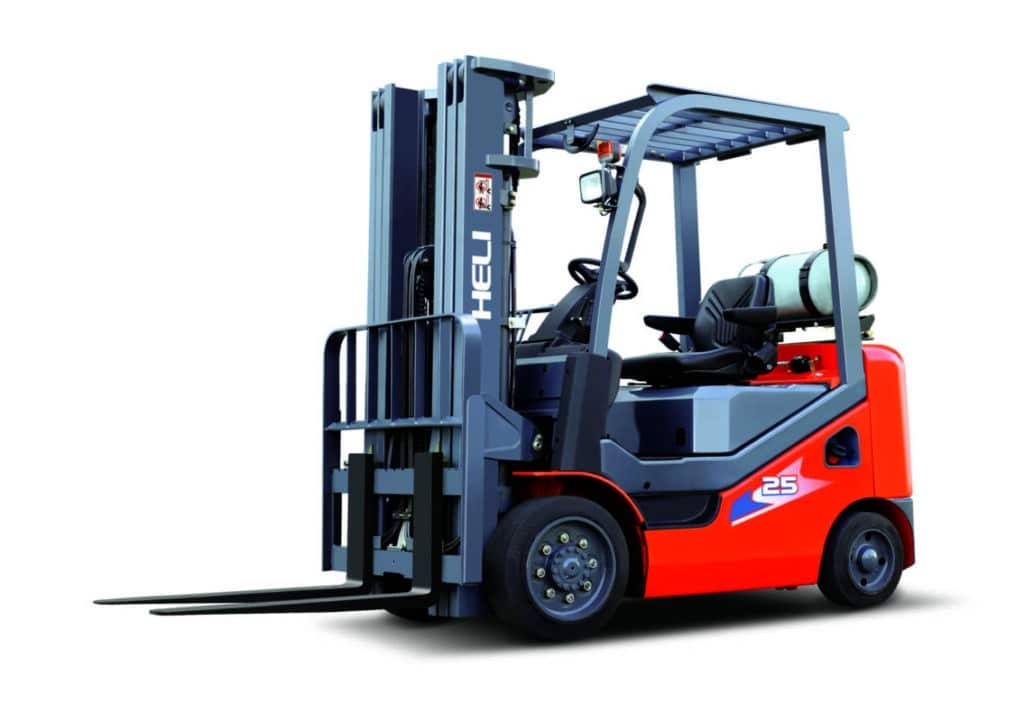

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

Check out our other cushion tire forklifts here.

Specifications

Identification- Series- Series:	H3C Series
Identification- Model:	CPYD18C
SPECIFICATIONS - Rated capacity (lbs):	3500
SPECIFICATIONS - Load Center (in):	24
DIMENSIONS - Overall height (overhead guard) (in):	82.7
DIMENSIONS - Overall length (with fork/without fork) (in):	123/84
DIMENSIONS - Overall width (single tire) (in):	37.6
DIMENSIONS - Min. Turning Radius (exterior) (A single tire is the same as double tires) (in):	70.9
WEIGHT - Total Weight (lbs):	6724
WHEELS, CHASSIS - Tire size (front/rear) (in):	18x6x12.125/14x5x10
PERFORMANCE - Max. traveling speed loaded/unloaded (mph):	10/10
PERFORMANCE - Engine mode:	KUBOTA WG2503
PERFORMANCE - Engine rated power HP/rpm:	LPG: 58.3/2600
PERFORMANCE - Engine rated torque (lb.ft)/rpm:	LPG: 128.1/1400
PERFORMANCE - Engine cylinder number:	4
PERFORMANCE - Piston displacement (L):	2.491
PERFORMANCE - Note:	Option: Dual Fuel
