PowerBoss PHOENIX 20

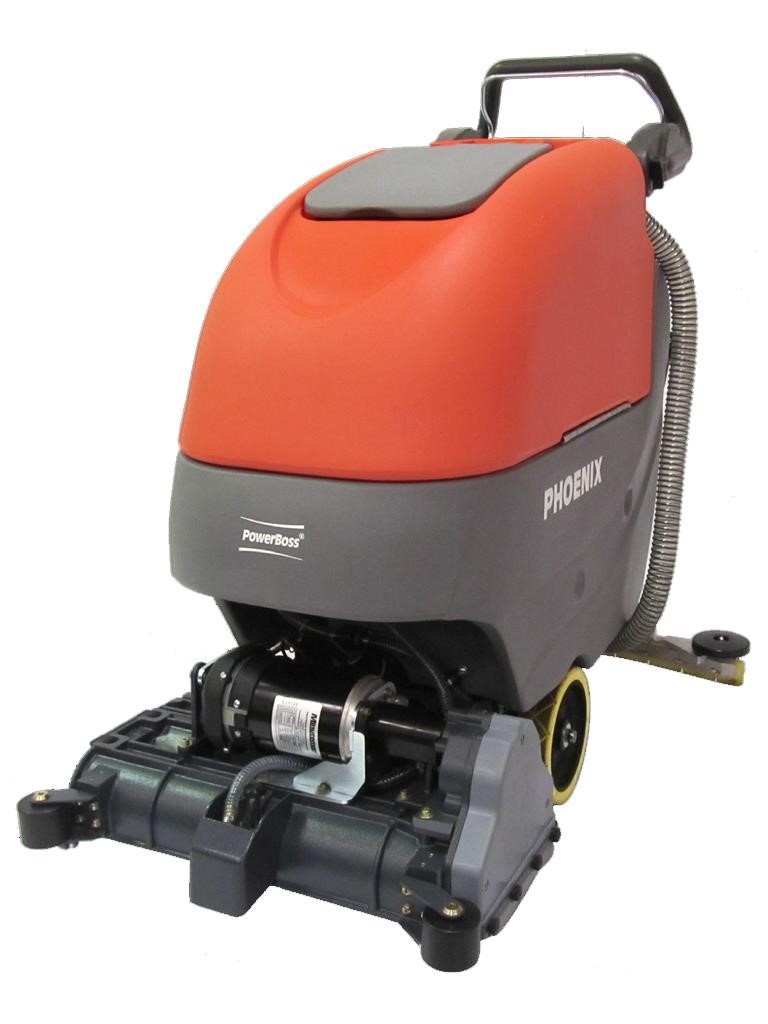

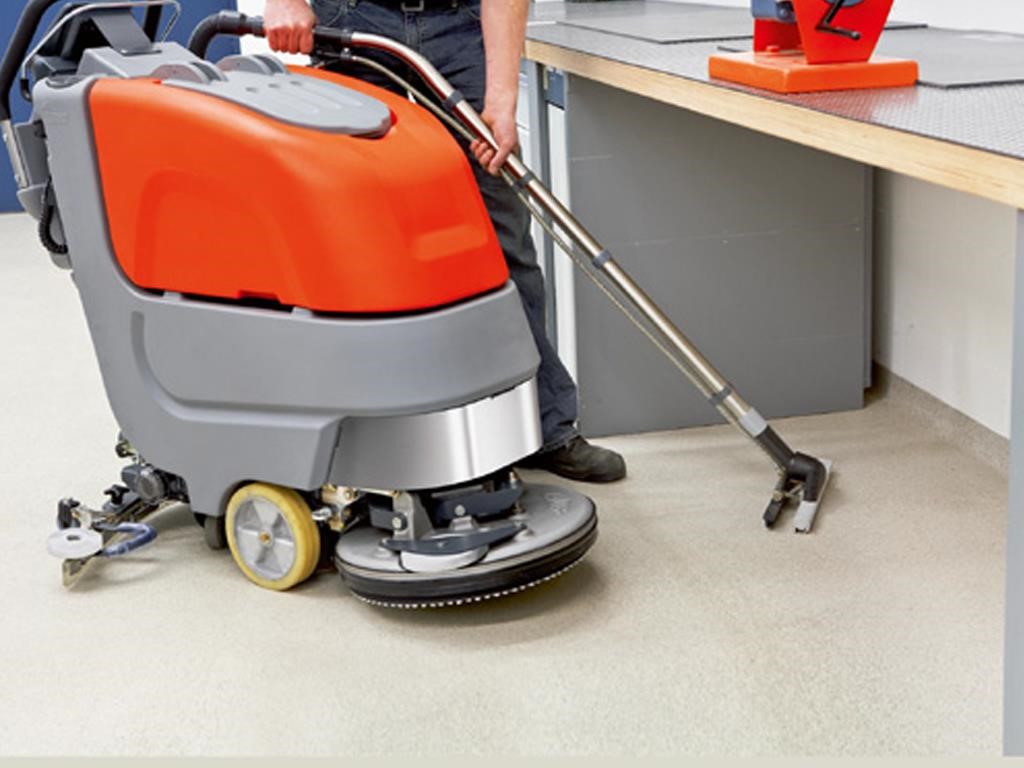

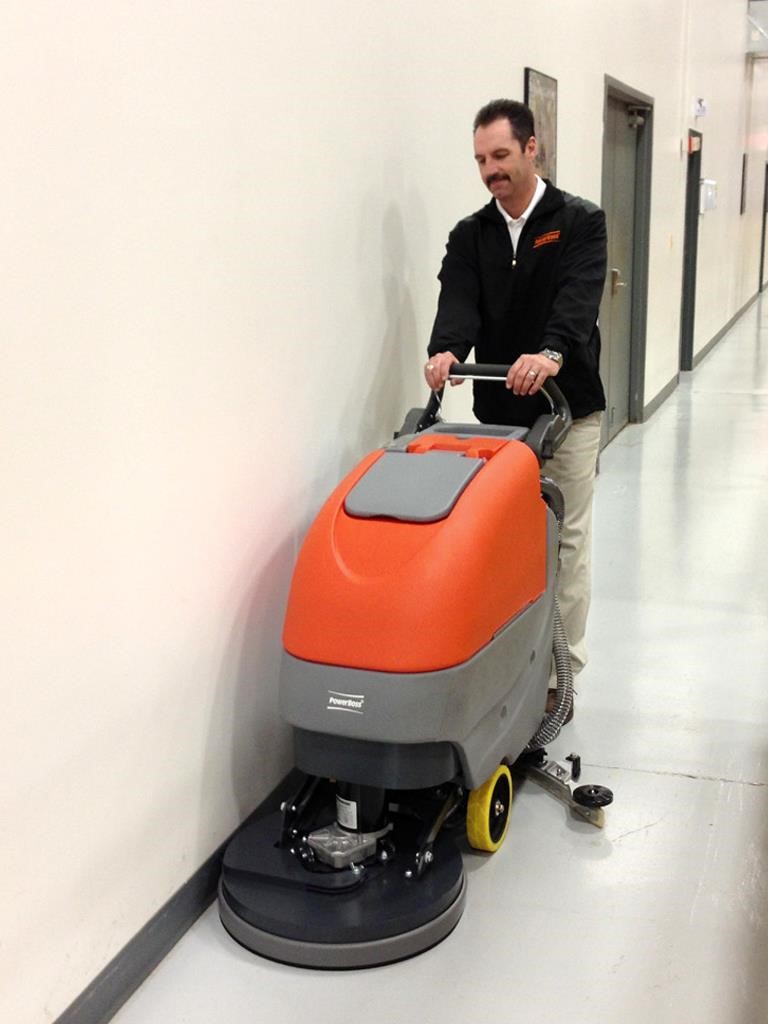

POWERBOSS PHOENIX 20—WALK BEHIND SCRUBBERS
The Phoenix 20 is a compact brush scrubber with a 20” cleaning path and is offered in disc or cylindrical models. The traction drive model 20 covers 20,000 sq. ft. per hour (1,858m²). Traction drive models offer ergonomic, adjustable speed regulation with the turn of a dial. The sleek design provides an excellent line of sight and the compact design results in total operator comfort by focusing on ergonomics. Easy to understand controls ensure that the machine is simple to operate. The Phoenix 20 features 12 gallon solution tanks and 13 gallon recovery tanks. The recovery tank is easy-to-clean and hygienic while the Anti-Foam System protects the vacuum motor from damage. An on-board charger is convenient and allows the machine to be charged anywhere. As an added safety feature, when the on board charger is plugged in the machine is not operable. Brush loading/unloading is as easy as the turn of a switch. The operator never has to manually remove the brushes. Squeegees have also been designed so that no operator adjustment is necessary. A low brush deck design is ideal for cleaning underneath obstacles such as shelves, warehouse racks and other stationary objects.
FEATURES
AQUASTOP SYSTEM
20% savings thru water & solution conservation.
ERGONOMICALLY DESIGNED
Reduces operator fatigue, with excellent line of site and comfort zone hand bails. Provides maximum maneuverability & operator safety.
USER FRIENDLY CONTROLS
Simple, easy to understand icons & selector switch plus one touch directional lever.
DURABLE CONSTRUCTION
Powder coated, epoxy painted, 11-gauge steel frame resists corrosion. Durable heavy-duty rotationally molded polyethylene tanks & bumper.
TOOL FREE
No Tools required for quick squeegee blade change.
CAPACITY
12 Gallon Solution/13 Gallon Recovery
LED DISPLAY
Battery Gauge as well as service indicator lights thus preventing unnecessary down time.
BRUSH LOADING
Hands-Free
BRUSH DECK
Low Profile to fit under obstacles
DECK OPTIONS
20” Disc or Cylindrical
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
| Technical Data - Scrubbing Style: | Disc or cylindrical |
|---|---|
| Technical Data - Sweep Capable: | Wet Sweep (Cylindrical) |
| Technical Data - Scrub Brushes (Cylindrical): | 20" (2) |
| Technical Data - Scrub Path: | 20" |
| Technical Data - Brush Pressure: | 1 setting |
| Technical Data - Recovery Capacity: | 12 gallon |
| Technical Data - Solution Capacity: | 13 gallon |
| Technical Data - Power Source: | 24 Volts |
| ropstype: | None |
| Technical Data - Theoretical Productivity: | 27,280 ft²/hr |
| Technical Data - Brush RPM (Cylindrical): | 600 RPM |
| Technical Data - Scrub Brushes (Disc): | 20" (1) |
| Technical Data - Brush Motor Power: | .75 hp |
| Technical Data - Brush RPM (Disc): | 180 RPM |
