Snorkel S3219E
Find Out More

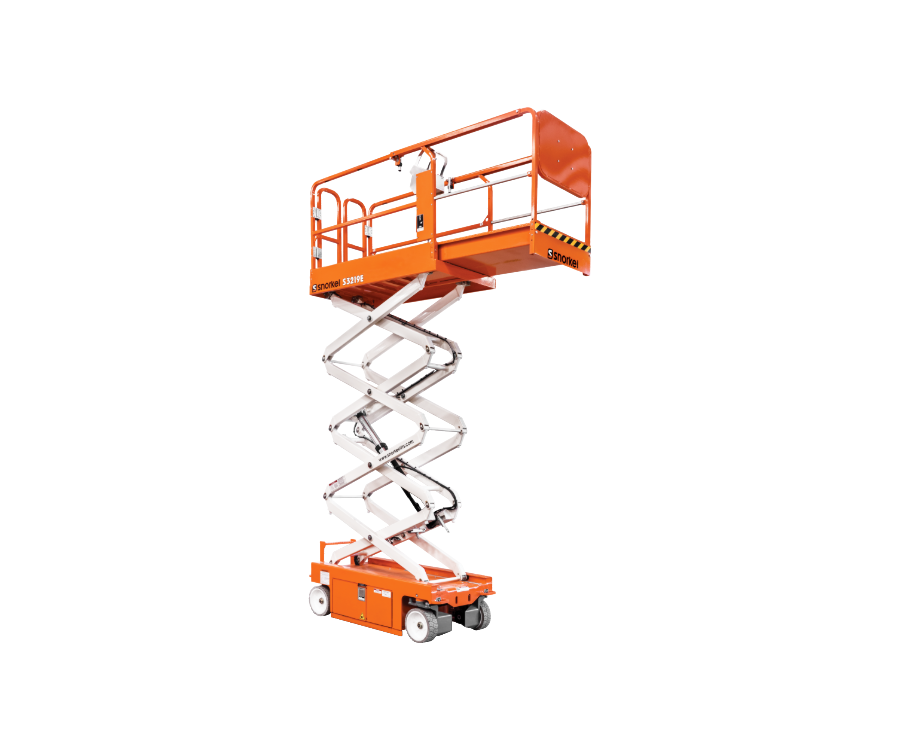

S3219E – ELECTRIC SCISSOR LIFT
The Snorkel S3219E electric scissor lift packs big features in a compact size. Easily driven through a standard doorway, this scissor lift suits indoor and outdoor applications. A telescopic roll-out deck extension maximizes platform space and deep cycle batteries maximize working hours.
FEATURES
- Roll-out deck extension with dual locks
- Non-marking tires
- Swing-out service trays
- Saloon-door style entry gates
- Descent alarm
- All motion alarm
- 2 persons indoor
- 1 person outdoor
- Proportional controls, including descent
- Power line to platform
- Loading pendant
- Platform overload system
- Flashing amber light
- Hour meter & on-board diagnostics display
- Integrated battery charger
- Battery condition indicator
- Crane & forklift points
- Dual lanyard attachment points
- Scissor stack roller slide plates (set of 2)
- 2 year parts & labor, 5 year structural warranty
| Max. platform height: | 19 ft |
|---|---|
| Max. working height: | 25 ft |
| Min. height (guardrails folded): | 65 in |
| Stowed height: | 83 in |
| Platform size (stowed): | 28.25 in x 63.75 in |
| Overall length (with step): | 70.4 in |
| Overall length (without step): | 68.3 in |
| Deck extension length: | 36 in |
| Platform size (extended): | 28.25 in x 99.75 in |
| Overall width: | Overall width |
| Ground clearance (stowed): | 2.63 in |
| Ground clearance (elevated): | .75 in |
| Platform capacity (SWL): | 550 lbs |
| Max. wind speed: | 28 mph |
| Max. drive speed (elevated): | 0.3 mph |
| Max. drive speed (stowed): | 2.0 mph |
| Raise / lower time: | 20 / 36 seconds |
| Gradeability: | 25% |
| Inside turning radius: | 4 in |
| Outside turning radius: | 64.25 in |
| Tires: | 12 x 4 non-marking rubber |
| Controls: | Proportional |
| Drive system: | 2-wheel drive |
| Power source: | 24V DC battery electric |
| Charger: | 90 - 240V, 25 amp |
| Weight: | 3,075 lbs |
