Snorkel ML25I

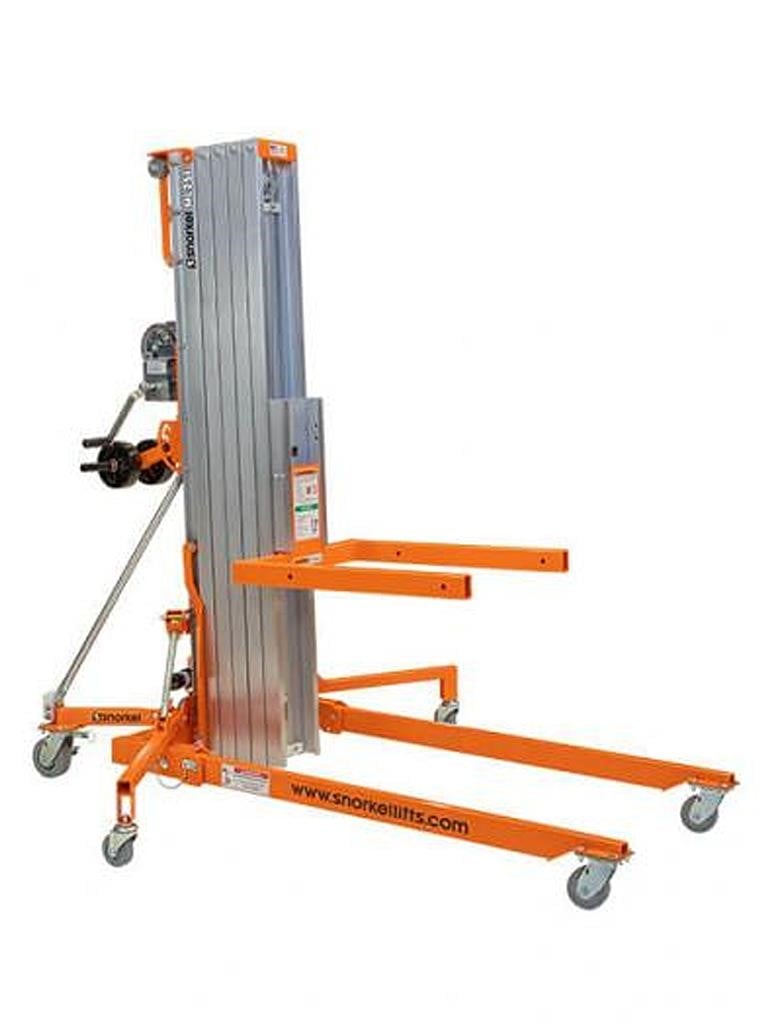

SNORKEL INDUSTRIAL MATERIAL LIFT − ML25I

The ML25I industrial material lift is dependably rugged. This robust material lift is designed to withstand the demands of the rental industry. Its reliable construction is also narrow enough to fit through standard doorways. A spring-actuated locking system provides quick and easy deployment and stowage.

INDUSTRIAL MATERIAL LIFTS

Featuring a dual-handle, shift-on-the-fly, two speed winch as standard, Snorkel’s industrial line of material lifts bring unrivaled durability and reliability to all types of material handling applications. The Snorkel ‘MLI’ range is built tough, yet compact for easy navigation through narrow aisles and in tight spaces. Best-in-class load capacities maximize productivity on the job, while heavy-gauge aluminum extrusions and cast metal cable pulleys ensure a long working life.

STANDARD FEATURES

• Stabilizers with non-marking swivel casters

• Dual handle, two-speed shift-on-the-fly winch

• Metal cable pulleys with sealed bearings

• Heavy-gauge aluminum extrusions

• Heavy-duty, non-marking casters

• Crane attachment point

• Cable guard

• Mast brake

• 2 year parts & labor, 5 year structural warranty

OPTIONS

• Special paint colors

• Adjustable forks

• Fork extensions

• Boom

• Pipe cradle

• Load platform

• Non-marking rear wheel transport package

• Smart latch

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

Performance

Min. load height6 in
Max. load capacity (42. In load center)200 lbs
Max. load capacity (24 in. load center)400 lbs
Max. load capacity (14 in. load center)600 lbs
Winch (high speed)4 cranks/ft
Winch (low speed)15 cranks/ft

Dimensions

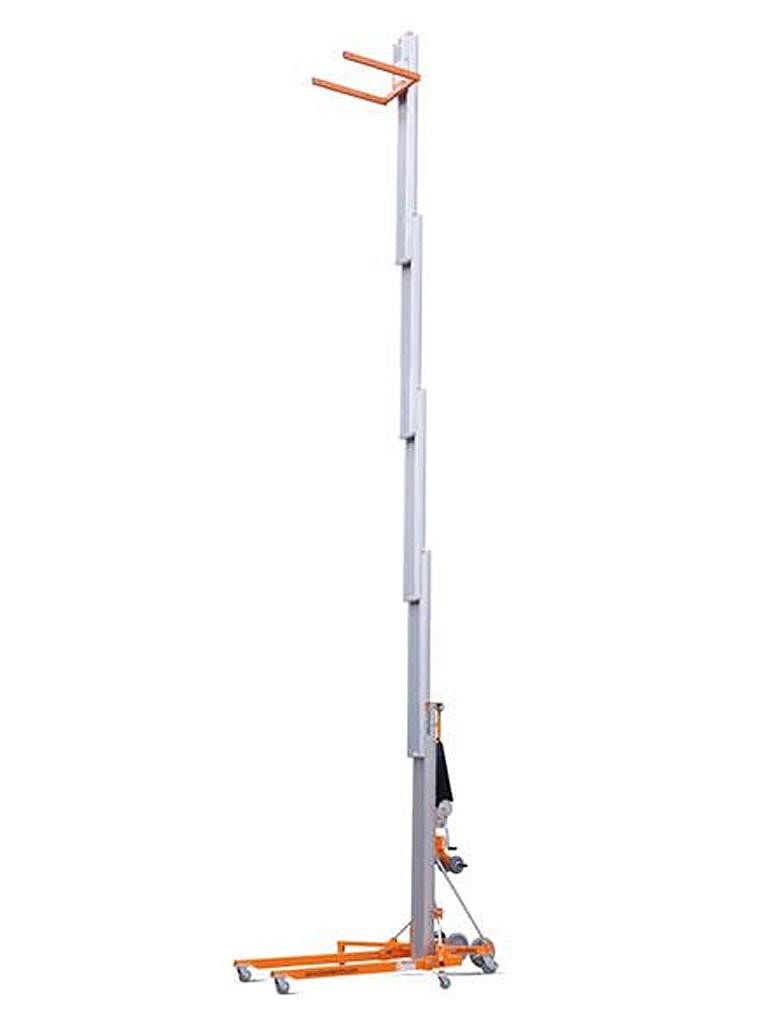

Lift height – forks up24 ft 11 in
Lift height – forks down23 ft 2 in
Stowed height 6 ft 2 in
Fork length 30 in
Operating length6 ft 3 in
Stowed length6 ft 5 in
Fork width (outside)23 in
Stabilizer width64 in
Stowed width30.5 in
Ground clearance2.5 in

Weight

Weight368 lbs
