Snorkel ML20I

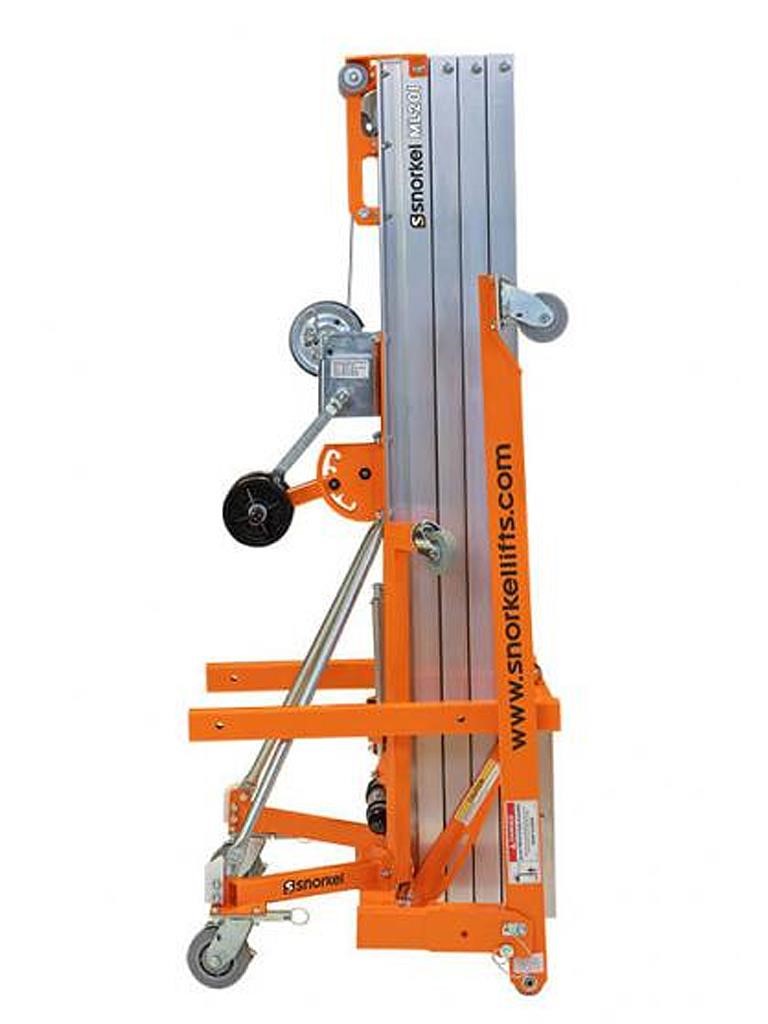

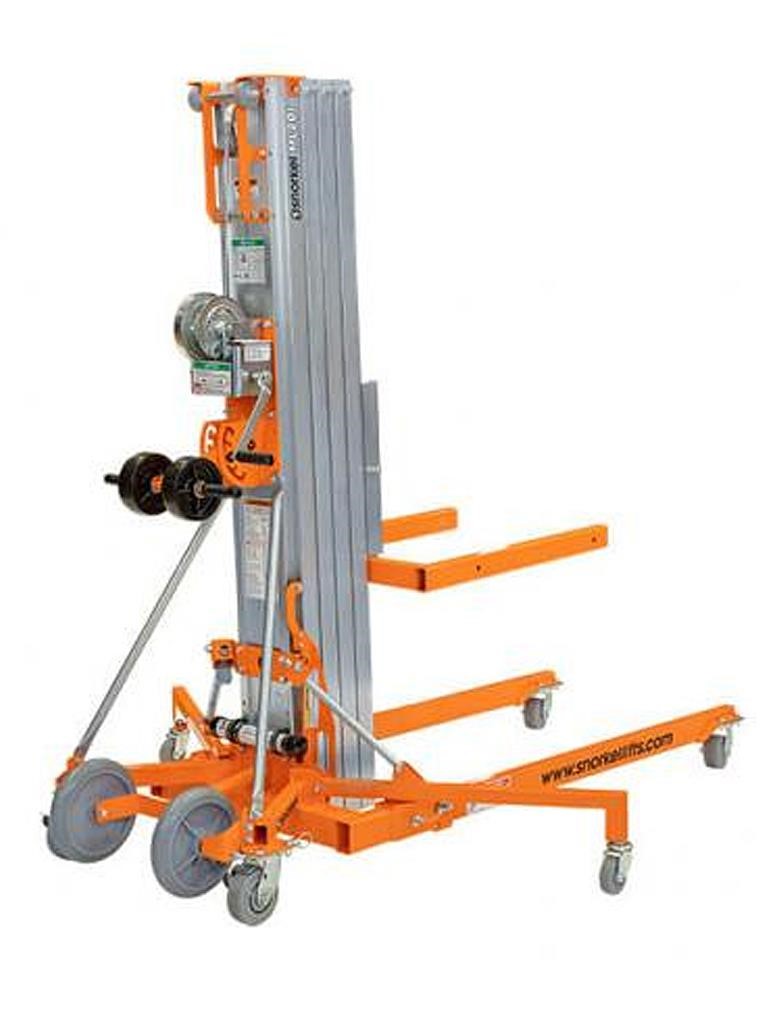

SNORKEL INDUSTRIAL MATERIAL LIFT − ML20I
The ML20I industrial material lift is readily resilient for every job. Capable of handling industrial-strength tasks, this high specification material lift is also narrow in design to maneuver through standard doorways. Easily able to handle heavy-duty load capacities, the ML20I features stabilizers with non-marking swivel casters as standard.
INDUSTRIAL MATERIAL LIFTS
Featuring a dual-handle, shift-on-the-fly, two speed winch as standard, Snorkel’s industrial line of material lifts bring unrivaled durability and reliability to all types of material handling applications. The Snorkel ‘MLI’ range is built tough, yet compact for easy navigation through narrow aisles and in tight spaces. Best-in-class load capacities maximize productivity on the job, while heavy-gauge aluminum extrusions and cast metal cable pulleys ensure a long working life.
STANDARD FEATURES
• Stabilizers with non-marking swivel casters
• Dual handle, two-speed shift-on-the-fly winch
• Metal cable pulleys with sealed bearings
• Heavy-gauge aluminum extrusions
• Heavy-duty, non-marking casters
• Crane attachment point
• Cable guard
• Mast brake
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Adjustable forks
• Fork extensions
• Boom
• Pipe cradle
• Load platform
• Non-marking rear wheel transport package
• Smart latch
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Performance
| Max. load capacity (42. In load center) | 300 lbs |
|---|---|
| Max. load capacity (24 in. load center) | 550 lbs |
| Max. load capacity (14 in. load center) | 750 lbs |
| Winch (high speed) | 4 cranks/ft |
| Winch (low speed) | 15 cranks/ft |
| Min. load height | 6 in |
Dimensions
| Lift height – forks up | 20 ft 3 in |
|---|---|
| Lift height – forks down | 18 ft 6 in |
| Stowed height | 6 ft 2 in |
| Fork width (outside) | 23 in |
| Stowed width | 30.5 in |
| Stabilizer width | 64 in |
| Fork length | 30 in |
| Operating length | 6 ft 3 in |
| Stowed length | 6 ft 5 in |
| Ground clearance | 2.5 in |
Weight
| Weight | 332 lbs |
|---|
