Snorkel ML15I

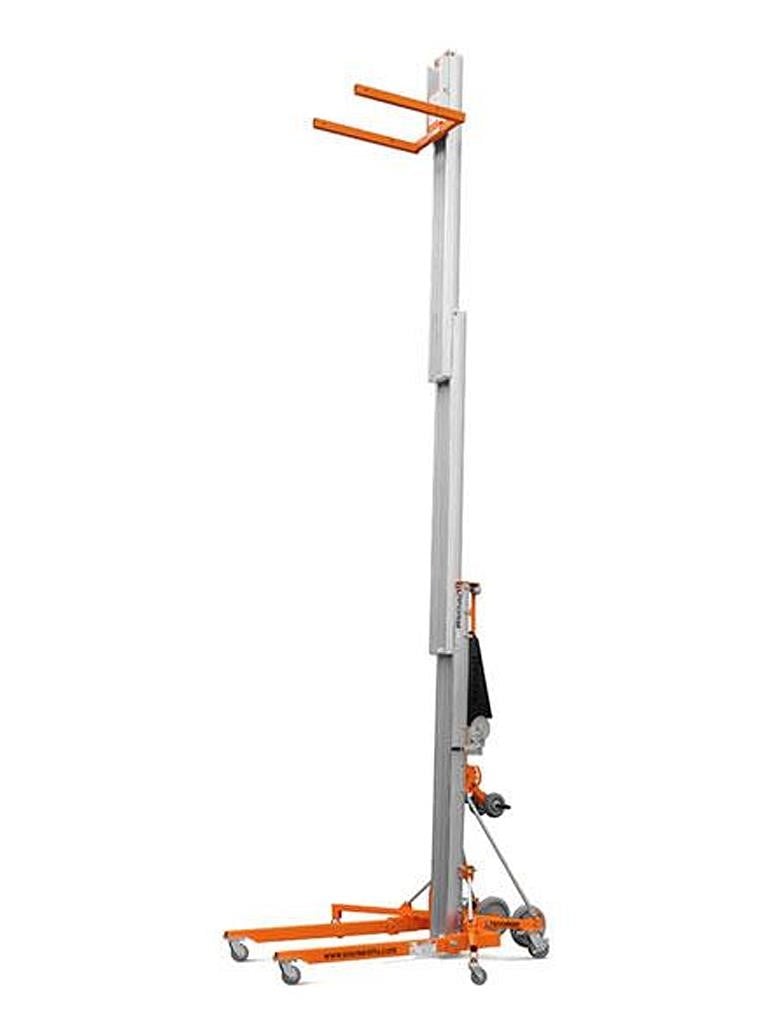

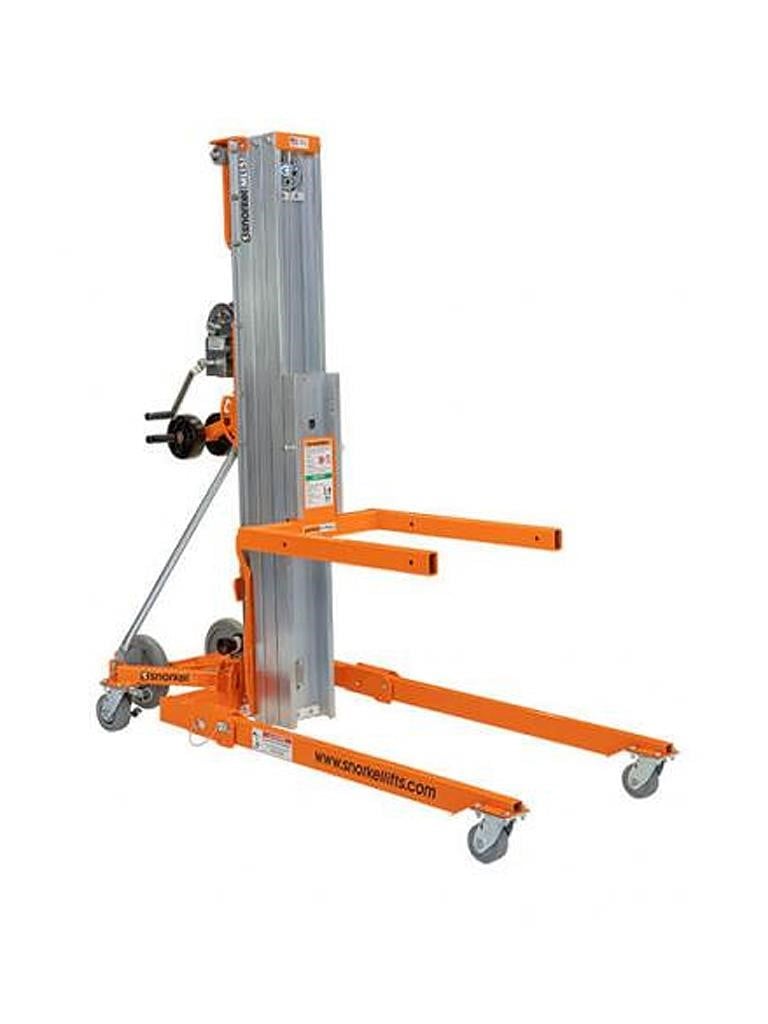

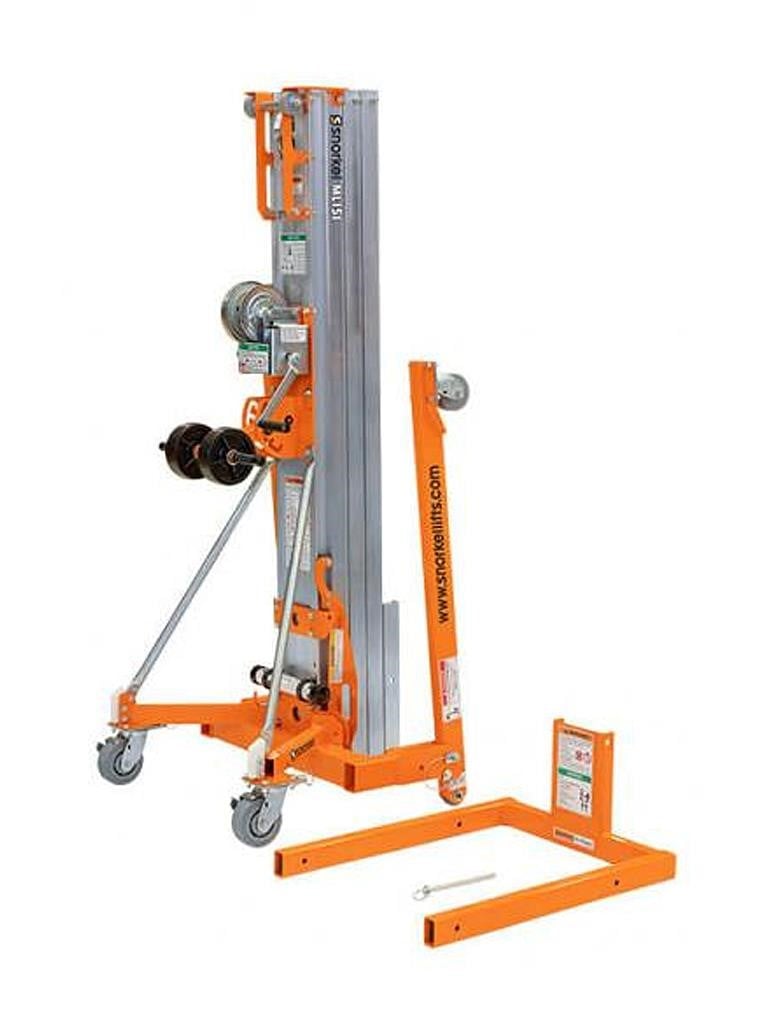

SNORKEL INDUSTRIAL MATERIAL LIFT − ML15I
The ML15I industrial material lift delivers trusted performance. Robust to handle the demands of the rental industry, this high specification material lift is also designed to improve productivity. It is equipped with a dual handle, shift-on-the-fly, two-speed winch for fast loading.
INDUSTRIAL MATERIAL LIFTS
Featuring a dual-handle, shift-on-the-fly, two speed winch as standard, Snorkel’s industrial line of material lifts bring unrivaled durability and reliability to all types of material handling applications. The Snorkel ‘MLI’ range is built tough, yet compact for easy navigation through narrow aisles and in tight spaces. Best-in-class load capacities maximize productivity on the job, while heavy-gauge aluminum extrusions and cast metal cable pulleys ensure a long working life.
STANDARD FEATURES
• Non-marking transport/loading wheels
• Dual handle, two-speed shift-on-the-fly winch
• Metal cable pulleys with sealed bearings
• Heavy-gauge aluminum extrusions
• Heavy-duty, non-marking casters
• Crane attachment point
• Cable guard
• Mast brake
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Adjustable forks
• Fork extensions
• Boom
• Pipe cradle
• Load platform
• Stabilizers with non-marking swivel casters
• Non-marking rear transport wheel package
• Straddle base
• Smart latch
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Performance
| Max. load capacity (42. In load center) | 325 lbs |
|---|---|
| Max. load capacity (24 in. load center) | 700 lbs |
| Max. load capacity (14 in. load center) | 800 lbs |
| Min. load height | 6 in |
| Winch (high speed) | 4 cranks/ft |
| Winch (low speed) | 15 cranks/ft |
Dimensions
| Lift height – forks up | 15 ft 8 in |
|---|---|
| Lift height – forks down | 13 ft 11 in |
| Stowed height | 6 ft 3 in |
| Fork length | 30 in |
| Operating length | 5 ft 7 in |
| Stowed length | 2 ft 9 in |
| Fork width (outside) | 23 in |
| Stowed width | 30.5 in |
| Stabilizer width | 5 ft 4 in |
| Ground clearance | 2.5 in |
Weight
| Weight | 270 lbs |
|---|
