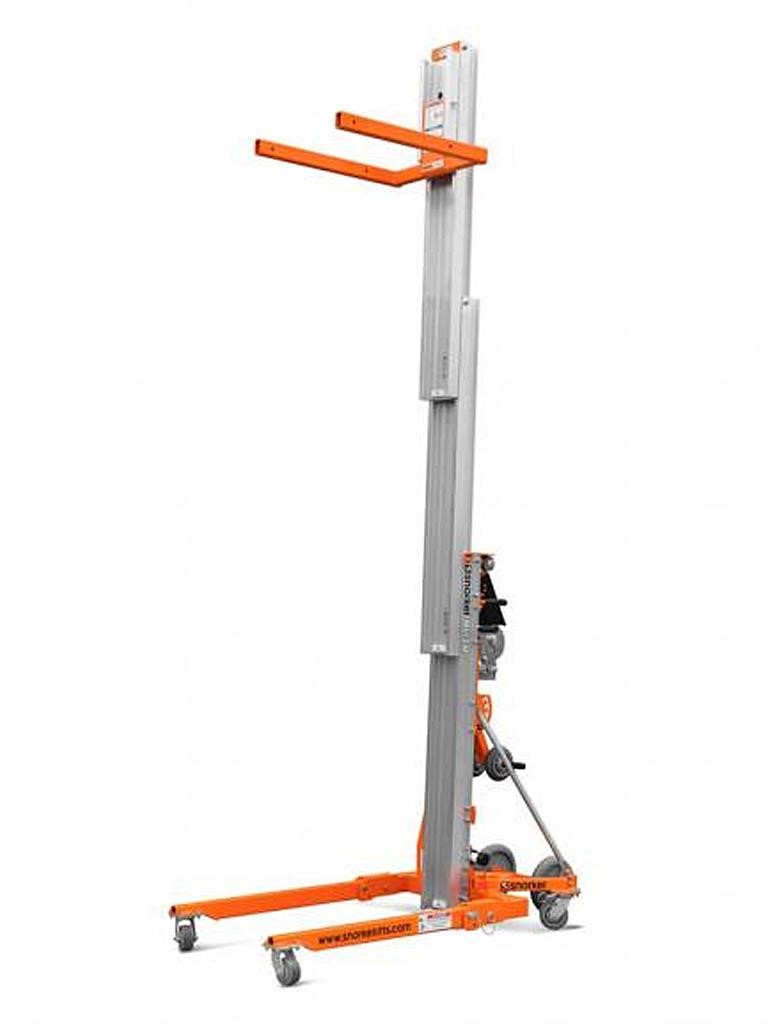

SNORKEL MINI MATERIAL LIFT − ML12M

The Snorkel ML12M mini material lift is up to the task. Featuring a shorter mast, this lift easily fits through interior doorways. Built with durable aluminum, the ML12M is robust and reliable for industrial and warehouse applications.

MINI MATERIAL LIFTS

High specification mini material lifts from Snorkel offer a reduced height mast and narrow design that can be easily maneuvered, even when stowed. For easy material handling, Snorkel’s mini material lifts features an innovative dual handle, shift-on-the-fly, two-speed winch to quickly raise loads.

STANDARD FEATURES

• Non-marking transport/loading wheels

• Dual handle, two-speed shift-on-the-fly winch

• Metal cable pulleys with sealed bearings

• Heavy-gauge aluminum extrusions

• Heavy duty non-marking casters

• Crane attachment point

• Cable guard

• Mast brake

• 2 year parts & labor, 5 year structural warranty

OPTIONS

• Special paint colors

• Adjustable forks

• Fork extensions

• Boom

• Pipe cradle

• Load platform

• Stabilizers with non-marking swivel casters

• Smart latch

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

Specifications

Performance

Max. load capacity (42. In load center)	185 lbs
Max. load capacity (24 in. load center)	440 lbs
Max. load capacity (14 in. load center)	700 lbs
Winch (high speed)	4 cranks/ft
Winch (low speed)	15 cranks/ft
Min. load height	6 in

Capacities

Lift height – forks up	12 ft 6.5 in
Lift height – forks down	10 ft 10 in
Stowed height	5 ft 3 in
Fork width (outside)	23 in
Fork length	30 in
Operating length	5 ft 8 in
Stowed length	33 in
Stabilizer width	64 in
Stowed width	30.5 in
Ground clearance	2.5 in
