Snorkel UL40
SNORKEL PUSH AROUND MAST LIFT − UL40

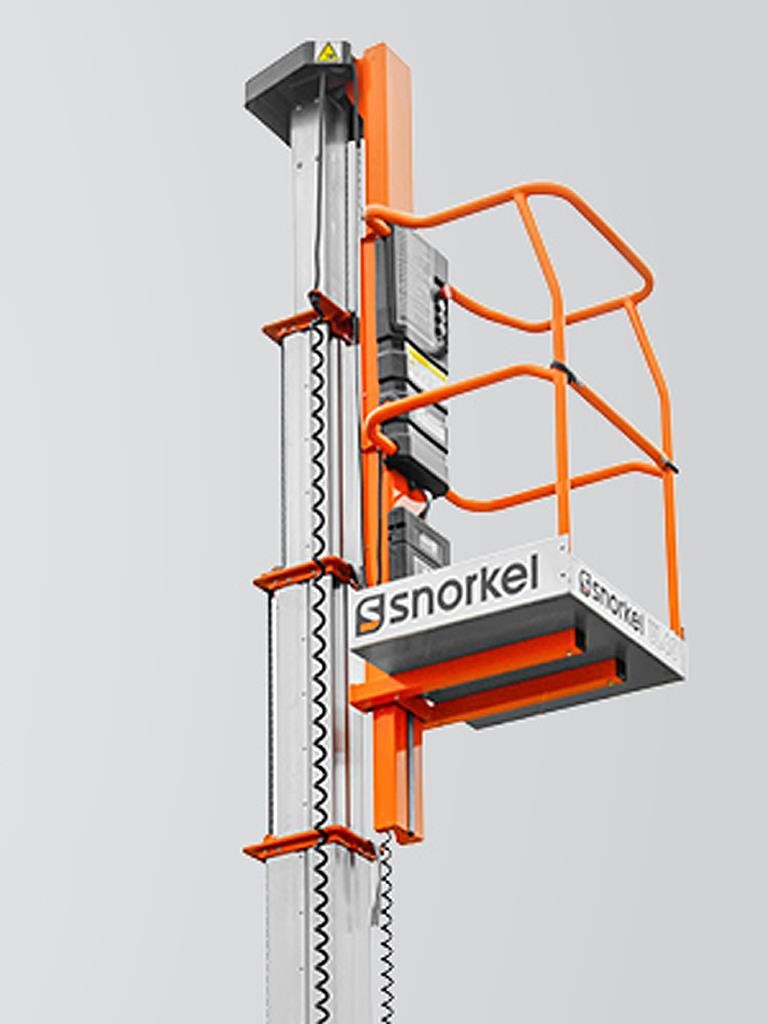

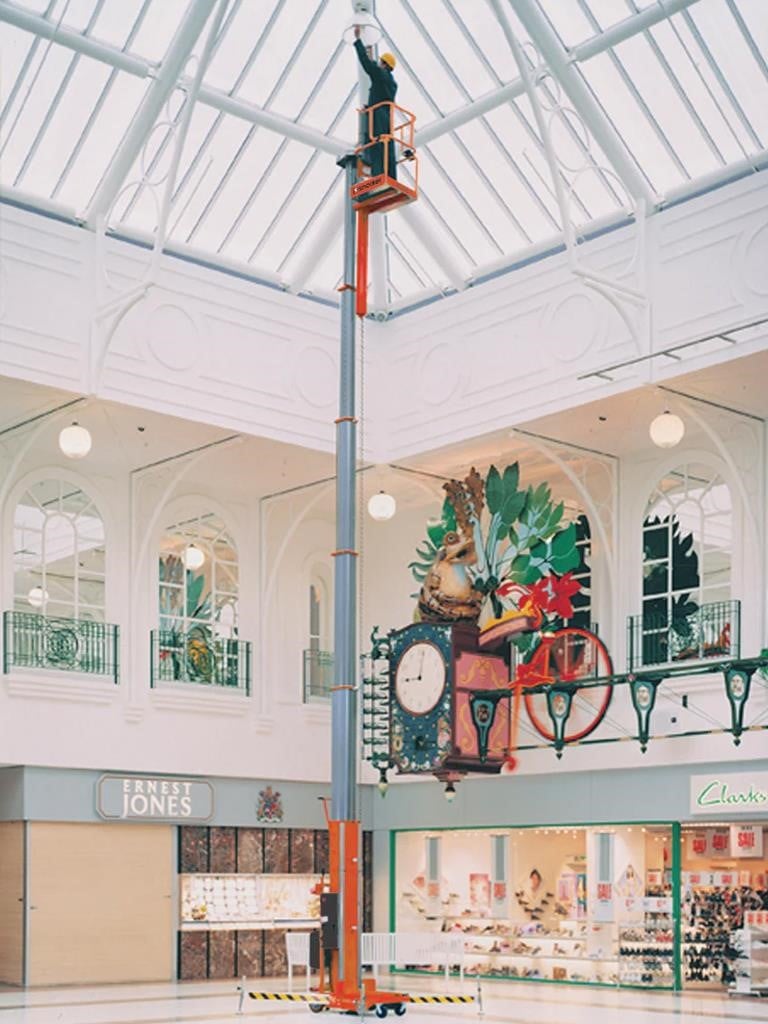

The Snorkel UL40 push-around mast lift is an easy and efficient work platform for indoor use. Fitted with outriggers as standard, the mast lift is also equipped with a patented telescopic Girder Lock mast for safe and stable work at height. Compact dimensions and a lightweight design easily fit through doorways for portability.
• Robust push-around mast lifts
• Patented Girder Lock mast design for stable working up to 46 ft
• Compact dimensions
• Passes through a standard doorway
• Easy loader system for flatbed vehicle transport
PUSH AROUND MAST LIFTS
Offering a robust work platform with a small footprint, Snorkel’s UL Series push-around mast lifts are ideal for contractors and facilities maintenance professionals. Each machine is compact, lightweight and easily fits through a standard doorway for a portable solution. A telescopic Girder Lock mast delivers safe and stable work at height with excellent lift capacity.
STANDARD FEATURES
• Patented girder lock telescopic mast system
• Integrated tilt-back system
• Ground level entry
• EZ Loader system for transport
• Outrigger interlock indicators
• Integrated battery charger (DC only)
• Non-marking wheels & casters
• 2 year parts & labor, 5 year structural warranty
• ANSI compliant
OPTIONS
• Special paint colors
• Tool tray
• Laser locator
• Environmental hydraulic oil
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
| IDENTIFICATION- Model: | UL40 |
|---|---|
| DIMENSIONS - Max. working height : | 46 ft |
| DIMENSIONS - Max. platform height : | 40 ft |
| DIMENSIONS - Stowed height : | 9 ft 6 in |
| DIMENSIONS - Tilt back height: | 6 ft 7 in |
| DIMENSIONS - Overall width : | 2 ft 5 in |
| DIMENSIONS - Platform width: | 26 in |
| PERFORMANCE - Max. wind speet: | 0 mph |
| DIMENSIONS - Overall length : | 4 ft 4 in |
| DIMENSIONS - Platform length : | 22 in |
| DIMENSIONS - Tilt back length : | 9 ft 10 in |
| DIMENSIONS - Stabilizer footprint: | 9 ft 8 in x 9 ft 4 in |
| POWER - Power source (DC): | 1 X 12V 105 Ah battery |
| POWER - Power source (AC): | 120/220V AC 50HZ |
| WEIGHT - Weight (DC): | 1,102 lbs |
| WEIGHT - Weight (AC): | 1,036 lbs |
| PERFORMANCE - Platform capacity (SWL) : | 300 lbs |
| PERFORMANCE - Raise/lower time : | 60/40 seconds |
| PERFORMANCE - Wall access (Distance from front of platform to wall): | 29 in |
| PERFORMANCE - Wheels : | 9 in x 2.5 in rear, 6 in castors front |
| PERFORMANCE - Controls : | Push button |
