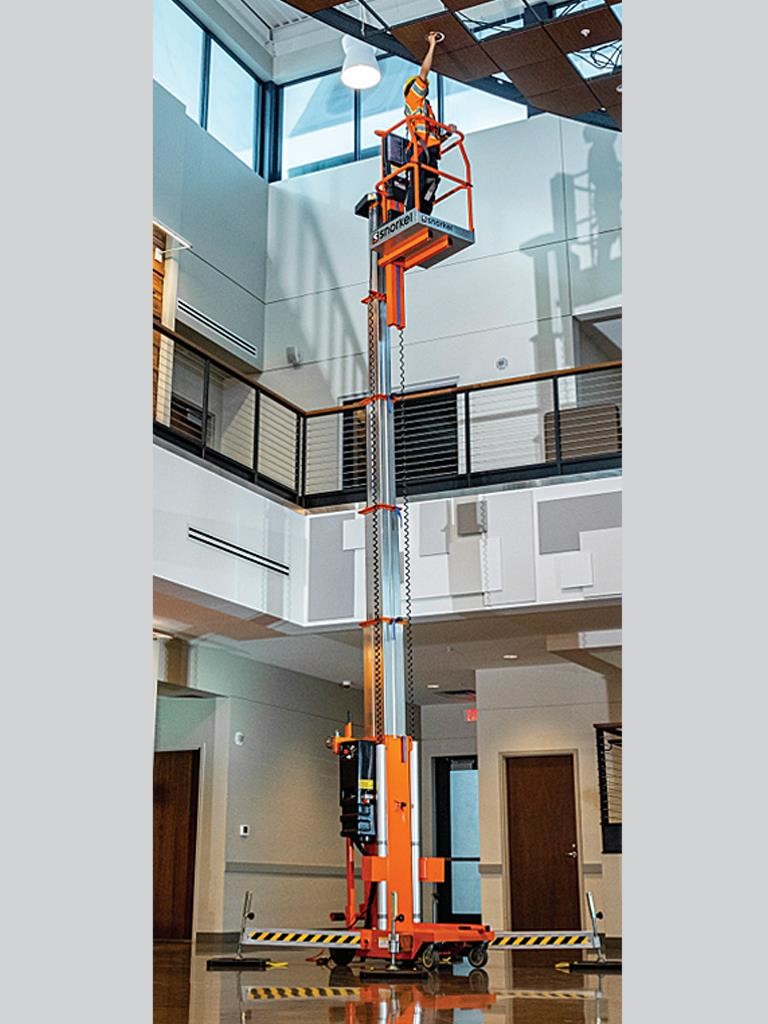

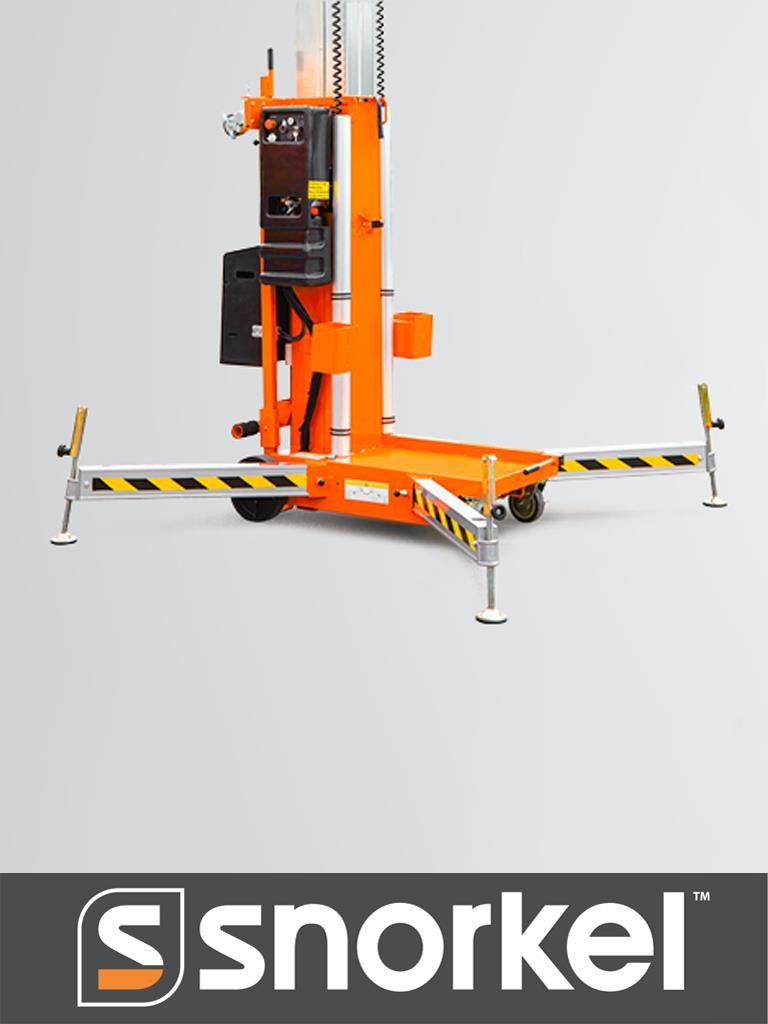

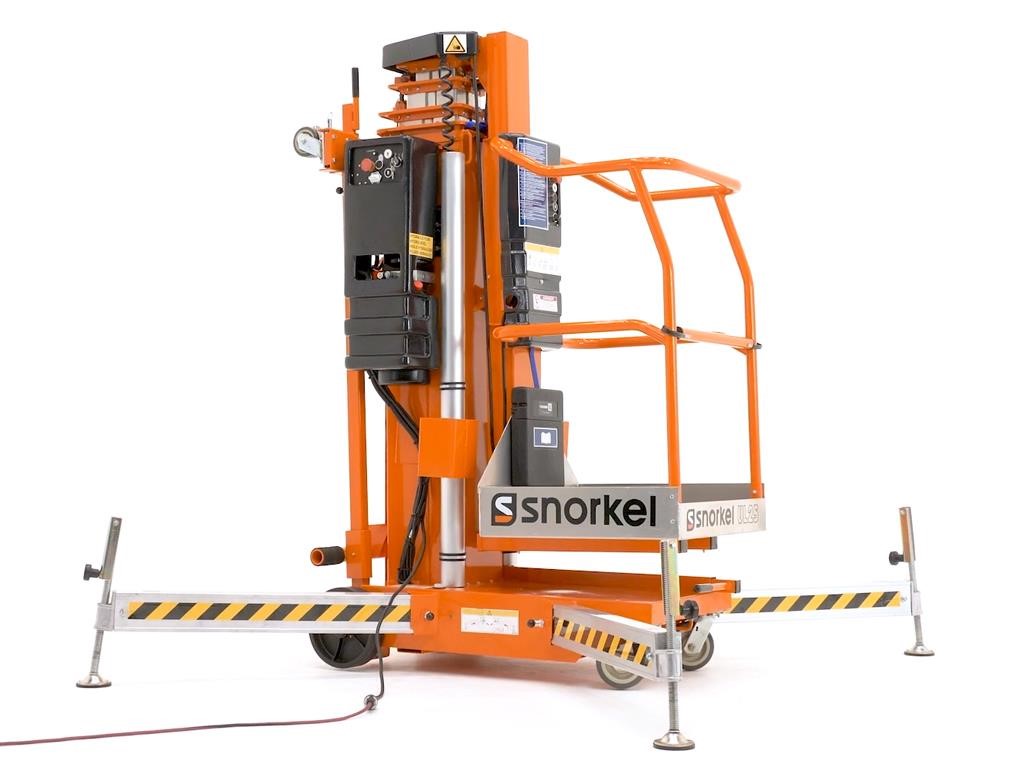

SNORKEL PUSH AROUND MAST LIFT − UL25

The Snorkel UL25 push-around mast lift is a lightweight & low cost indoor work platform. Designed with a small footprint and outriggers as standard one person can easily set up and operate the UL25 for quick access.

PUSH AROUND MAST LIFTS

Offering a robust work platform with a small footprint, Snorkel’s UL Series push-around mast lifts are ideal for contractors and facilities maintenance professionals. Each machine is compact, lightweight & easily fit through standard doorway for a portable solution a telescopic Girder Lock mast deliver safe and stable work at height with excellent lift capacity.

STANDARD FEATURES

• Patented girder lock telescopic mast system

• Integrated tilt-back system

• Ground level entry

• EZ Loader system for transport

• Outrigger interlock indicators

• Integrated battery charger (DC only)

• Non-marking wheels & casters

• 2 year parts & labor, 5 year structural warranty

• ANSI compliant

OPTIONS

• Special paint colors

• Tool tray

• Laser locator

• Environmental hydraulic oil

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

Specifications

Dimensions

Max. working height	30 ft 11 in
Max. platform height	24 ft 11 in
Stowed height	6 ft 6 in
Tilt back height	6 ft 5 in
Overall width	2 ft 5 in
Platform width	26 in
Overall length	4 ft 2 in
Platform length	22 in
Tilt back length	8 ft 6 in
Stabilizer footprint	6 ft 10 in x 6 ft 6 in

Performance

Max. wind speet	0 mph
Controls	Push button
Platform capacity (SWL)	350 lbs
Wall access (Distance from front of platform to wall)	14 in
Wheels	9 in x 2.5 in rear, 6 in castors front
Raise/lower time	43/23 seconds
