Snorkel MB26J
SNORKEL SELF-PROPELLED ELECTRIC MAST BOOM LIFTS − MB26J
MADE TO BE VERSATILE

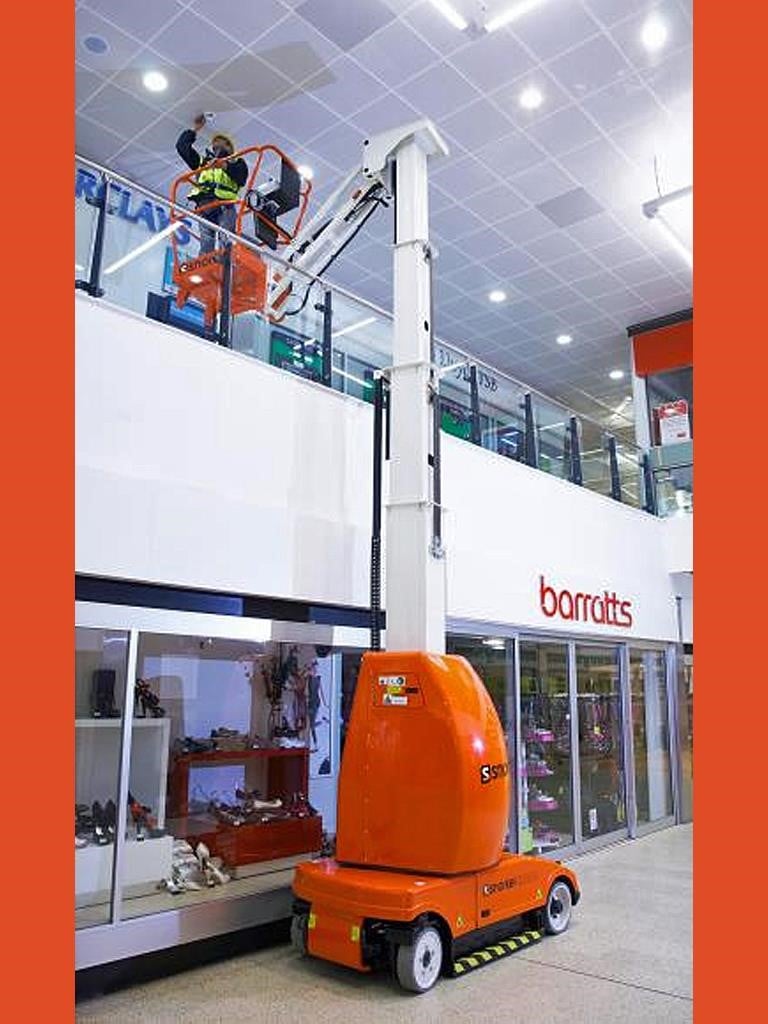

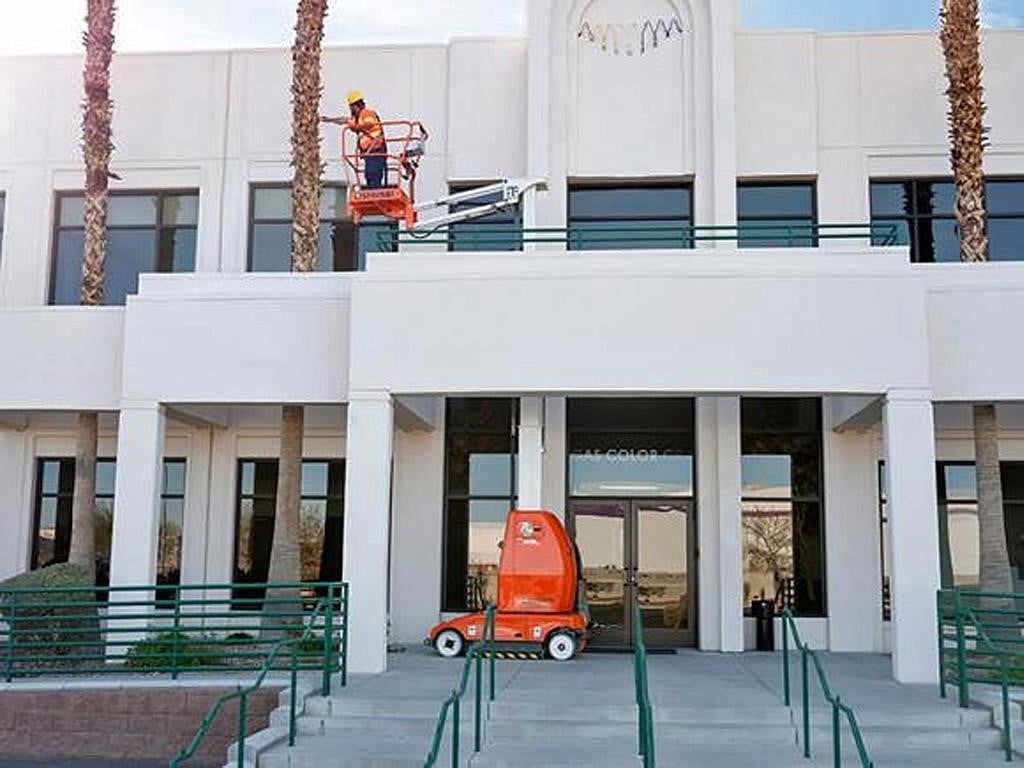

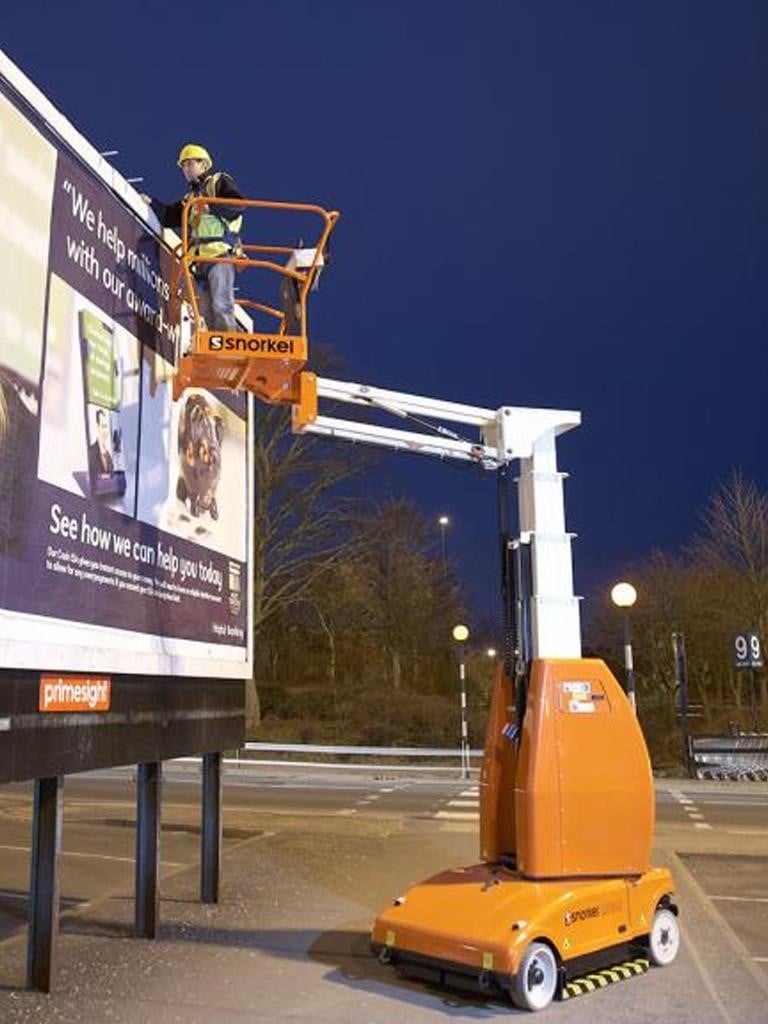

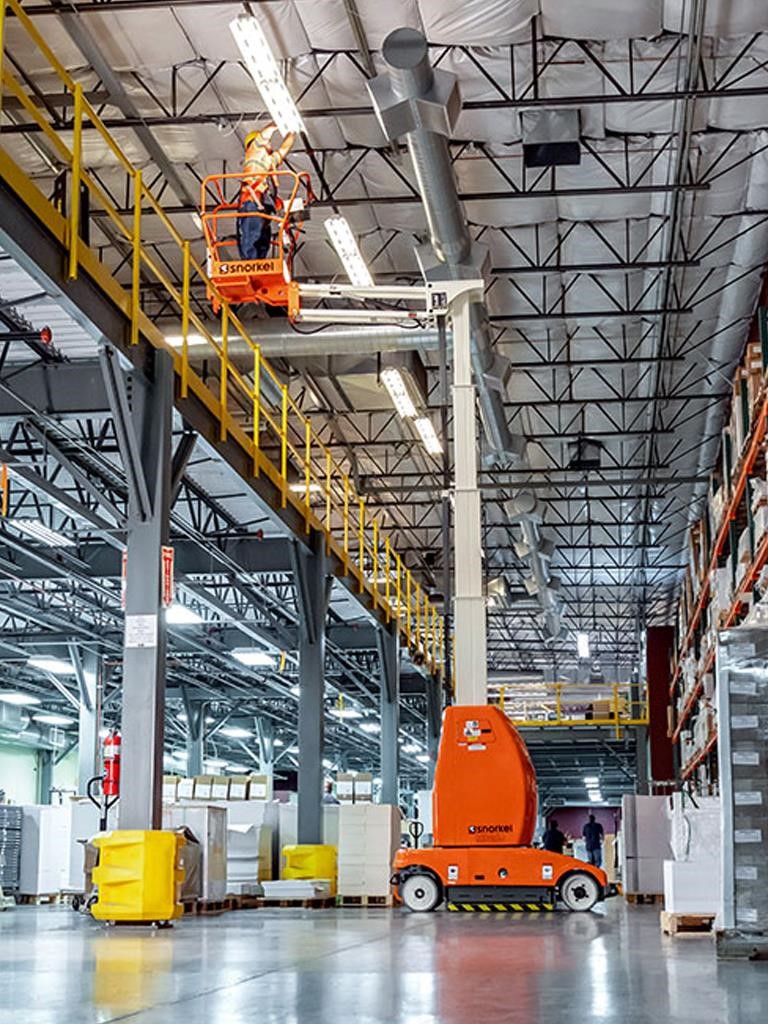

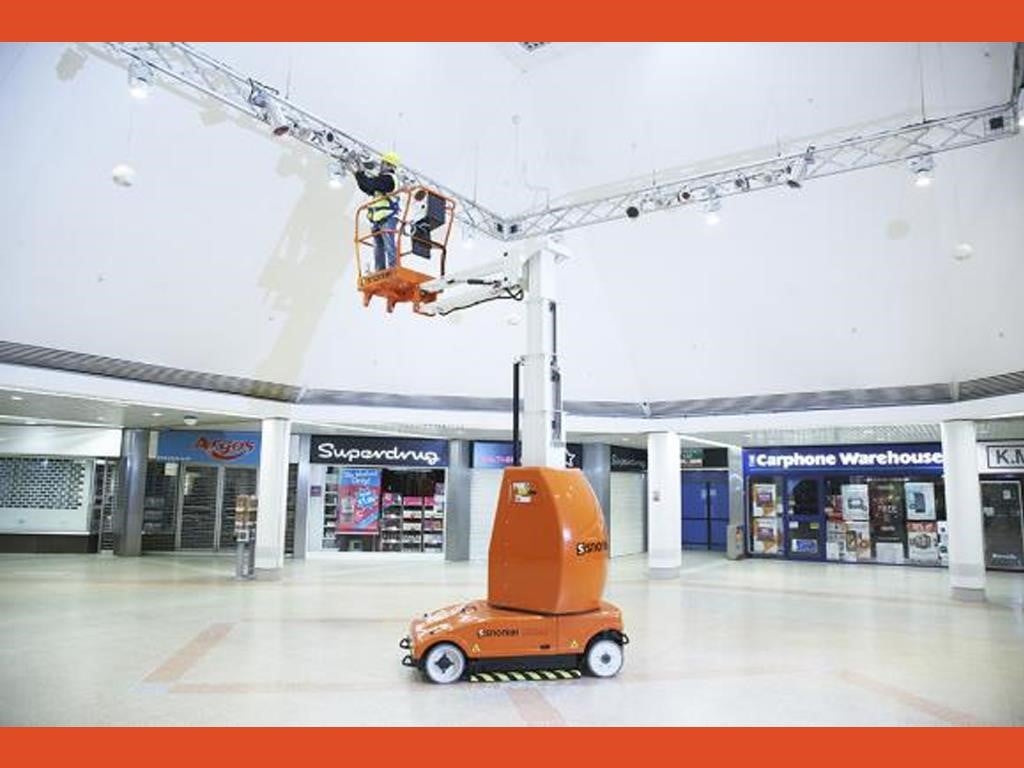

The Snorkel MB26J is a versatile electric mast boom lift. Designed for applications requiring up-&-over capabilities, the lift is fitted with a jib for working in confined spaces. A 360° mast rotation adds maneuverability for even more precision.
SELF PROPELLED MAST LIFTS

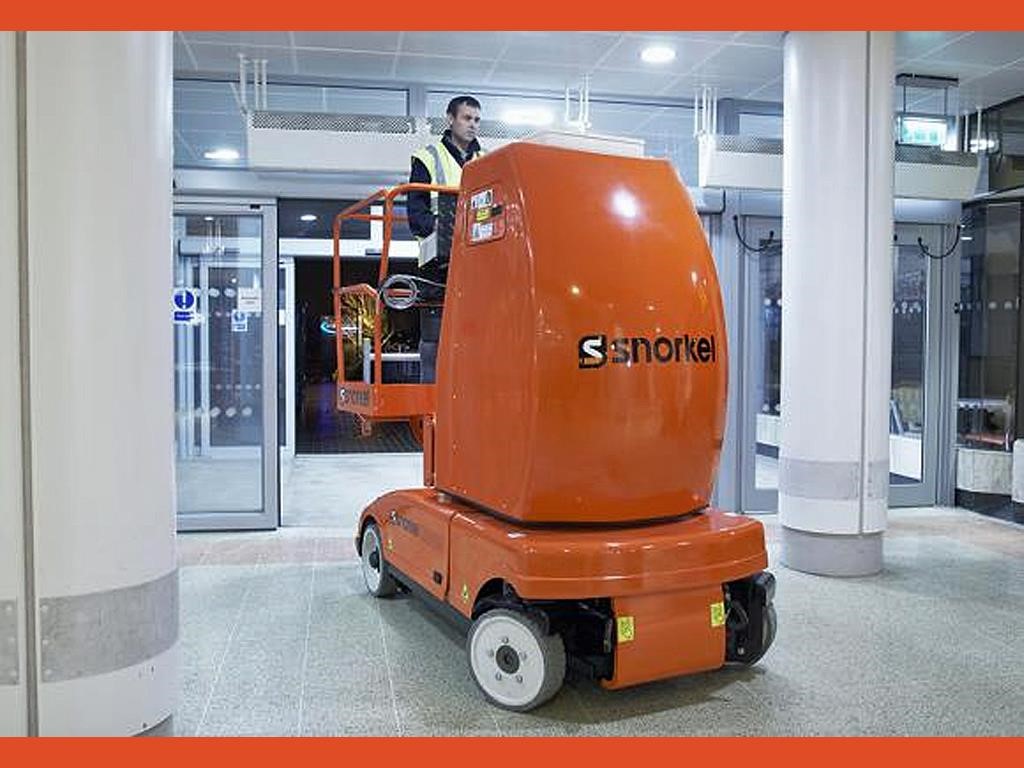

Snorkel line of self-propelled telescopic mast lifts are ideal for various indoor applications. Narrow dimension allow these lifts to be driven through standard doorways and carried in passenger elevators. Available electric drive provide longer duty cycles and increased efficiency on the job on select models.
STANDARD FEATURES
• Ultra-tight inside turning radius
• Proportional controls
• Tilt alarm

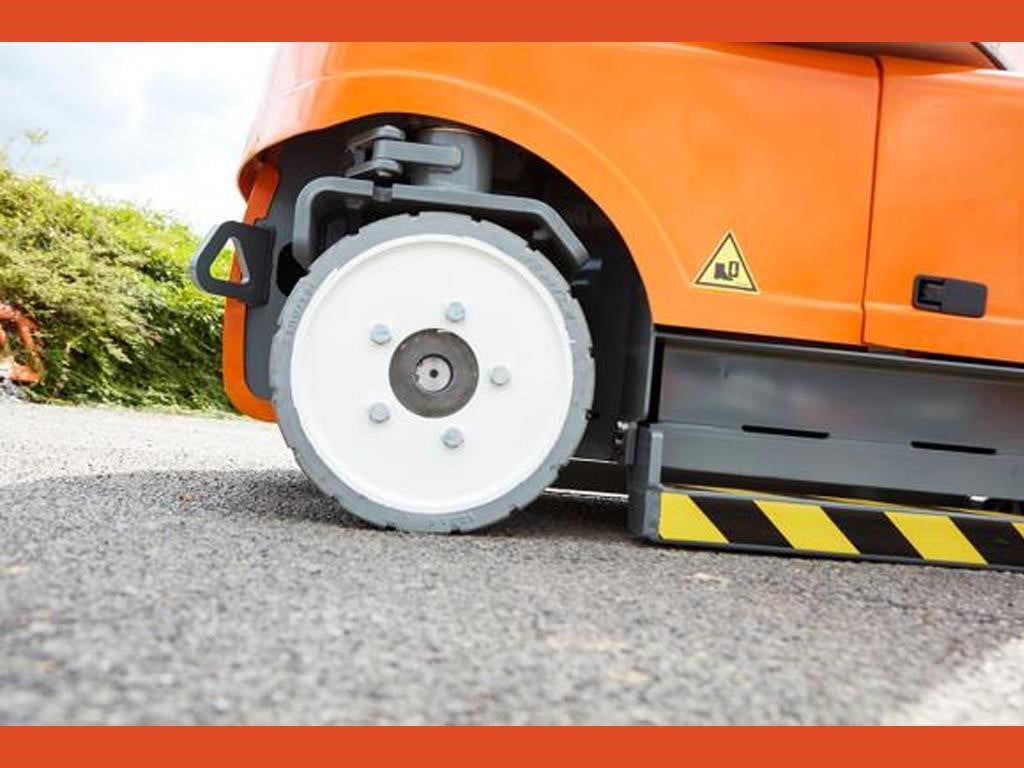

• Non-marking rubber tires
• 2 persons indoors
• 1 person outdoors
• Self-seeking automatic battery charger
• Power line to platform

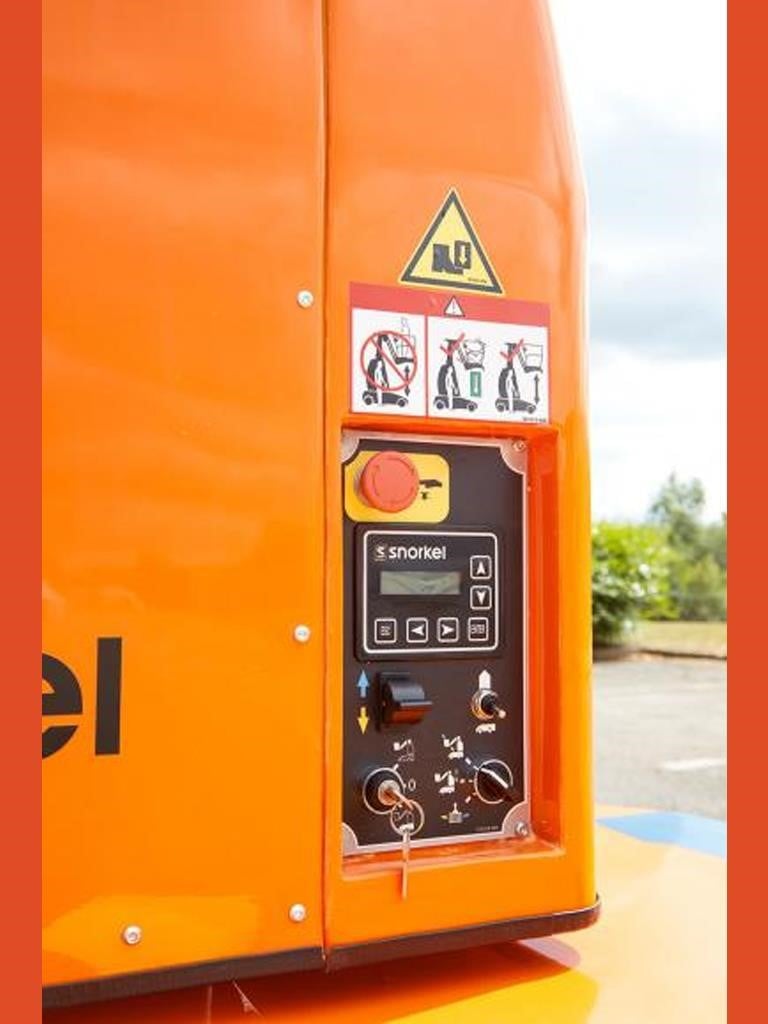

• Hour meter & on-board diagnostics display

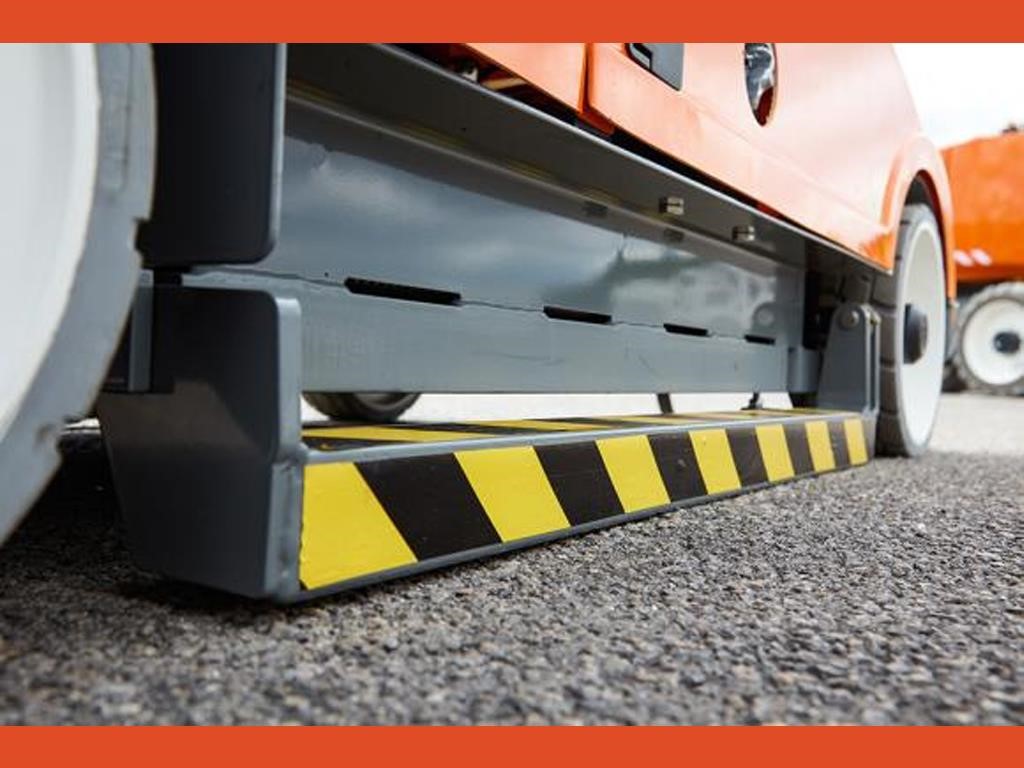

• Hydraulic pothole protection system
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Flashing amber light
• Environmental hydraulic oil
• Snorkel OnSite telematics
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Dimensions
| Max. platform height | 25 ft 6 in |
|---|---|
| Max. working height | 31 ft 6 in |
| Stowed height | 6 ft 6 in |
| Overall width | 39 in |
| Overall length | 9 ft 2 in |

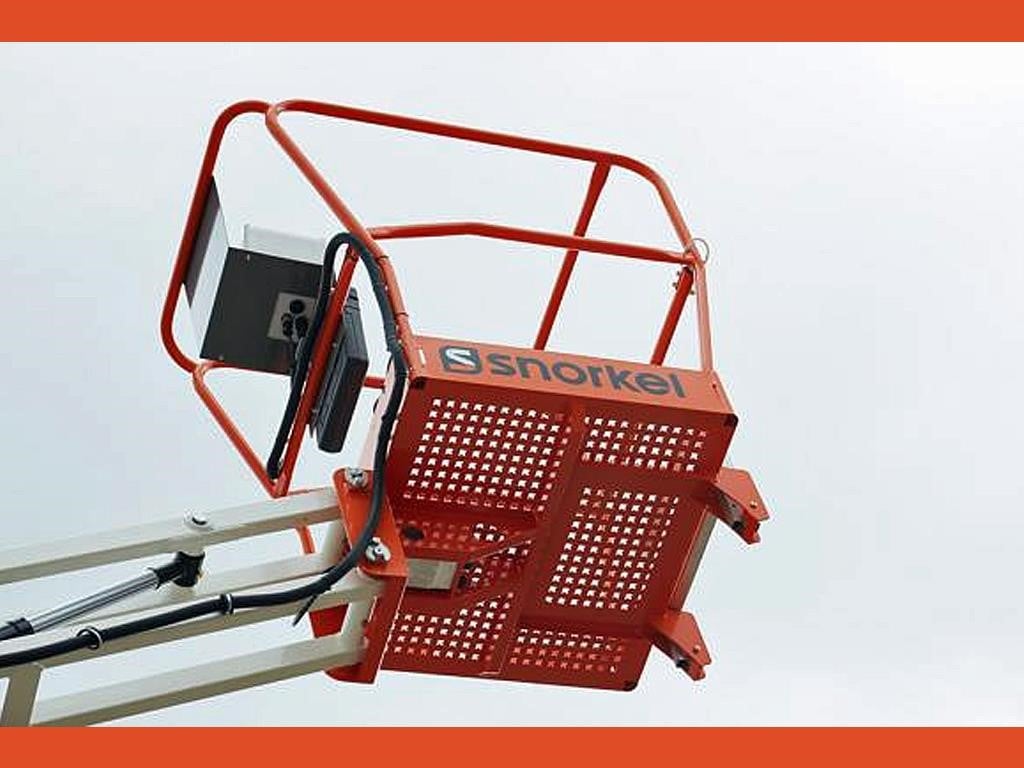

| Platform size | 30 in x 28 in |
| Max. horizontal reach | 9 ft 10 in |
| Ground clearance | 4 in |
Performance
| Outside turning radius | 6 ft 10 in |
|---|---|
| Inside turning radius | 11 in |
| Jib length | 4 ft 7 in |
| Jib arc | 130° |
| Max. wind speed | 28 mph |
| Drive system | Electro/hydraulic |
| Tires | 13.5 x 4 non-marking rubber |
| Max. drive speed (elevated) | 0.3 mph |
| Max. drive speed (stowed) | 2 mph |
| Raise/lower time | 56/27 seconds |
| Max. drive height | 25 ft 4 in |
| Platform capacity (SWL) | 475 lbs |
| Controls | Proportional controls |
| Gradeability | 25% |
Weight
| Weight | 7,000 lbs |
|---|
Power
| Power source | 4 x 6V x 375 Ah batteries |
|---|
