Snorkel TL49J
SNORKEL TOWABLE BOOM LIFT — TL49J
MIGHTY MOBILE

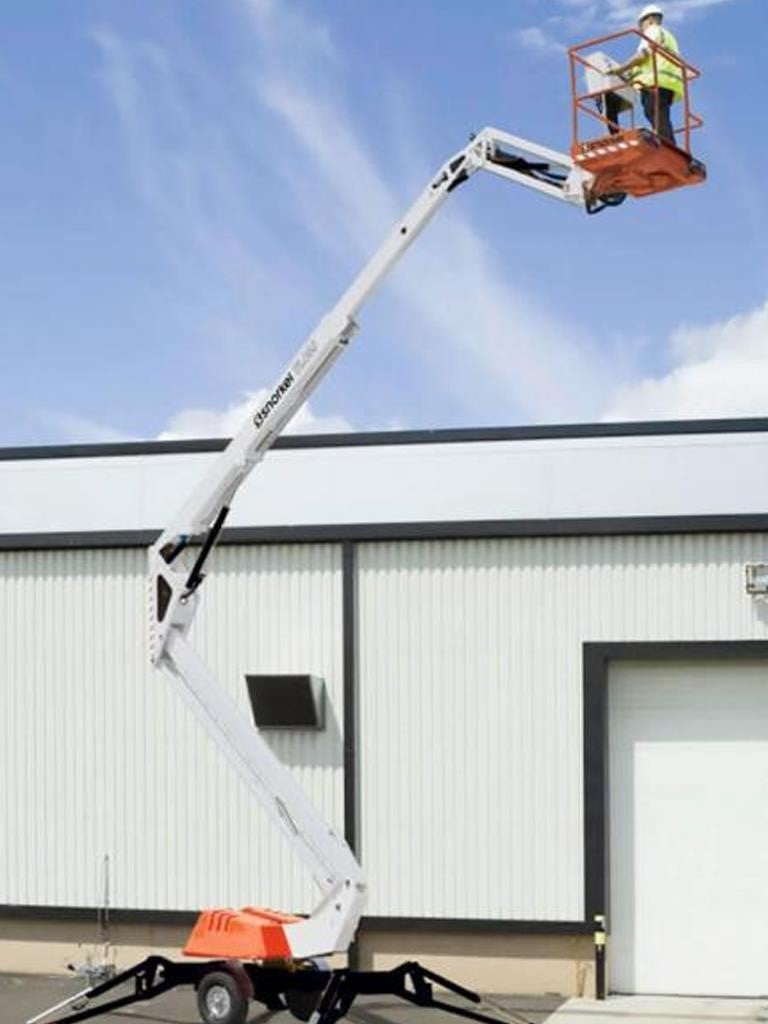

The Snorkel TL49J is a heavy-duty towable boom lift. The articulating/telescopic boom with jib offers a superb working envelope and class-leading outreach. Stabilizing outriggers include load-sensing interlocks for safe operation. Live hydraulic controls make this robust machine simple to operate and maintain.
FEATURES

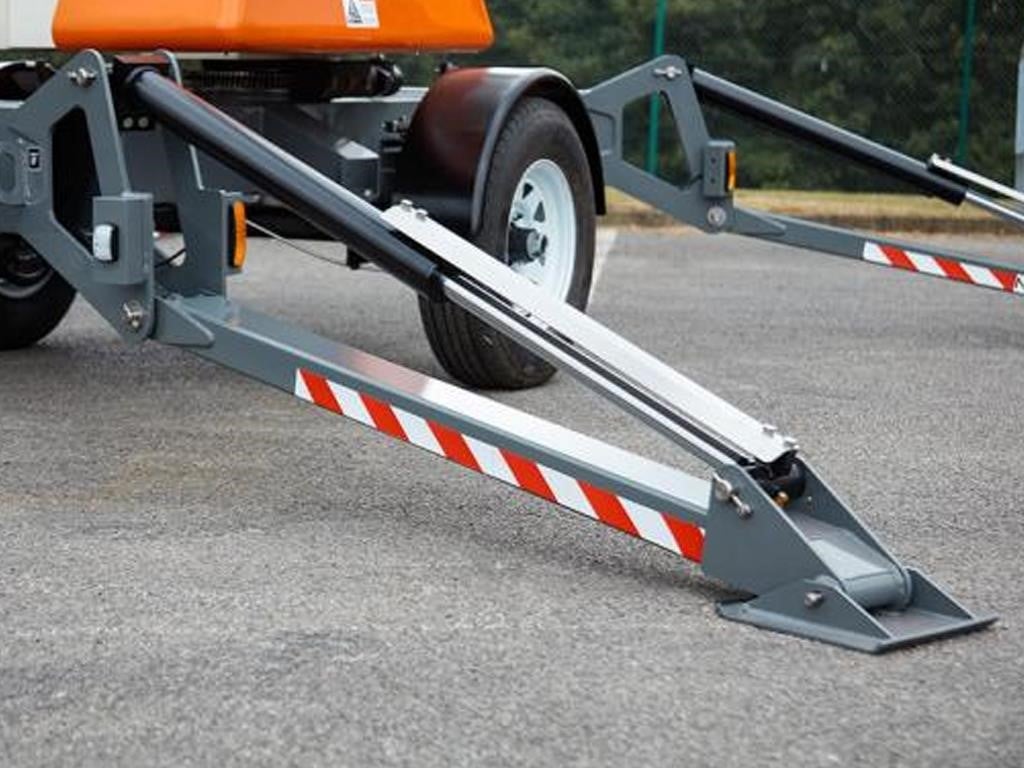

• Hydraulic stabilizers
• In-line boom design for maximum rigidity
• Hand pump emergency lowering from platform
• Lock valves on all hydraulic cylinders

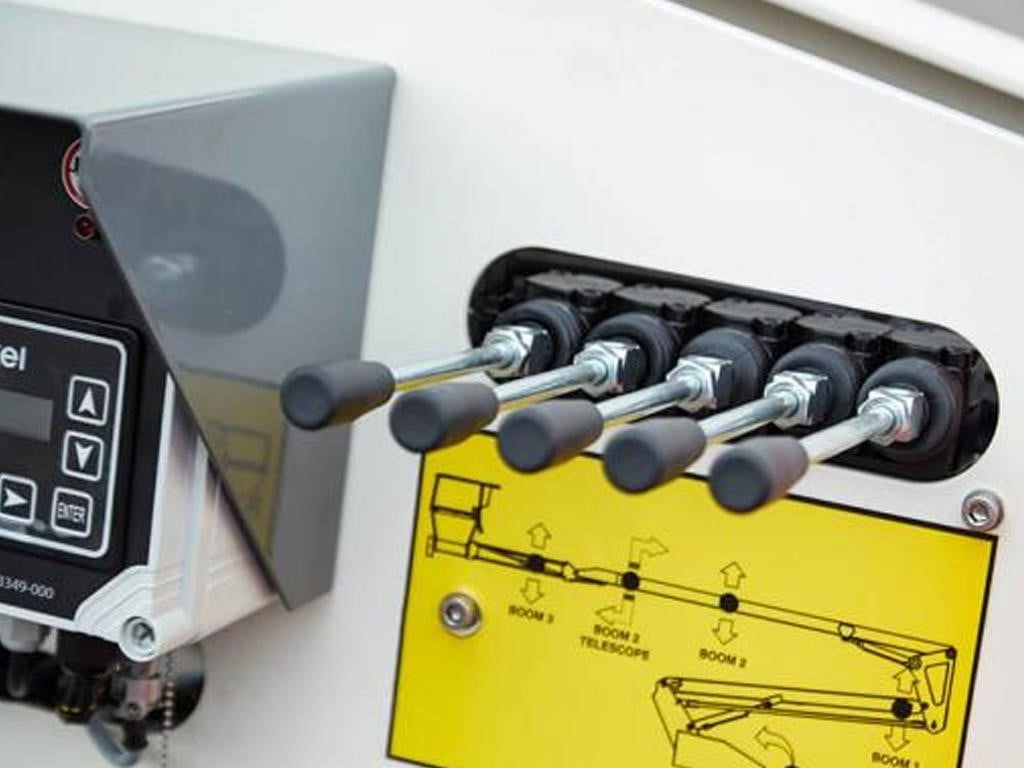

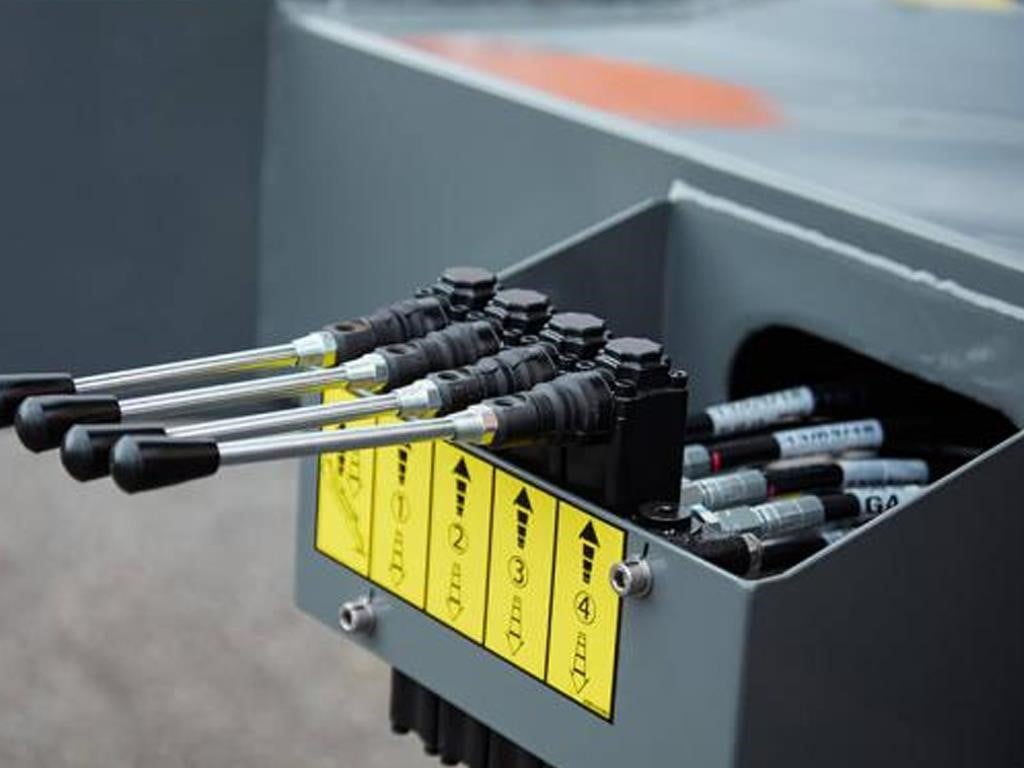

• Proportional live hydraulic controls
• Integral road lighting board
• Power line to platform
• Dual lanyard attachment points
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Work lights in platform
• Flashing amber light
• Airline to platform
• Nylon spreader pads (set of 4)
• 110V/220V AC power
• Gasoline power
• Bi-energy (gas + batteries)
• Environmental hydraulic oil
• Snorkel OnSite™ telematics
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications
| Platform depth | 2 ft 4 in |
|---|---|
| Jib length | 4 ft 3 in |
| Stowed height | 7 ft 2 in |
| Jib arc | 130° |
| Power source | 24V DC battery |
| Stabilizer footprint | 15 ft 9 in x 15 ft 5 in |
| Platform capacity (SWL) | 425 lbs |
| Max. wind speed | 28 mph |
| Max. horizontal reach | 27 ft 10 in |
| Platform width | 3 ft 9 in |
| Weight | 5,269 lbs |
| Platform rotation | 90° |
| Power options | Gasoline; bi-energy (combustion & battery); AC electric |
| Wheels | 205/75R16 |
| Max. platform height | 48 ft 8 in |
| Controls | Hydraulic proportional |
| Towing length | 23 ft 3 in |
| Towing width | 5 ft 8 in |
| Max. working height | 54 ft 8 in |

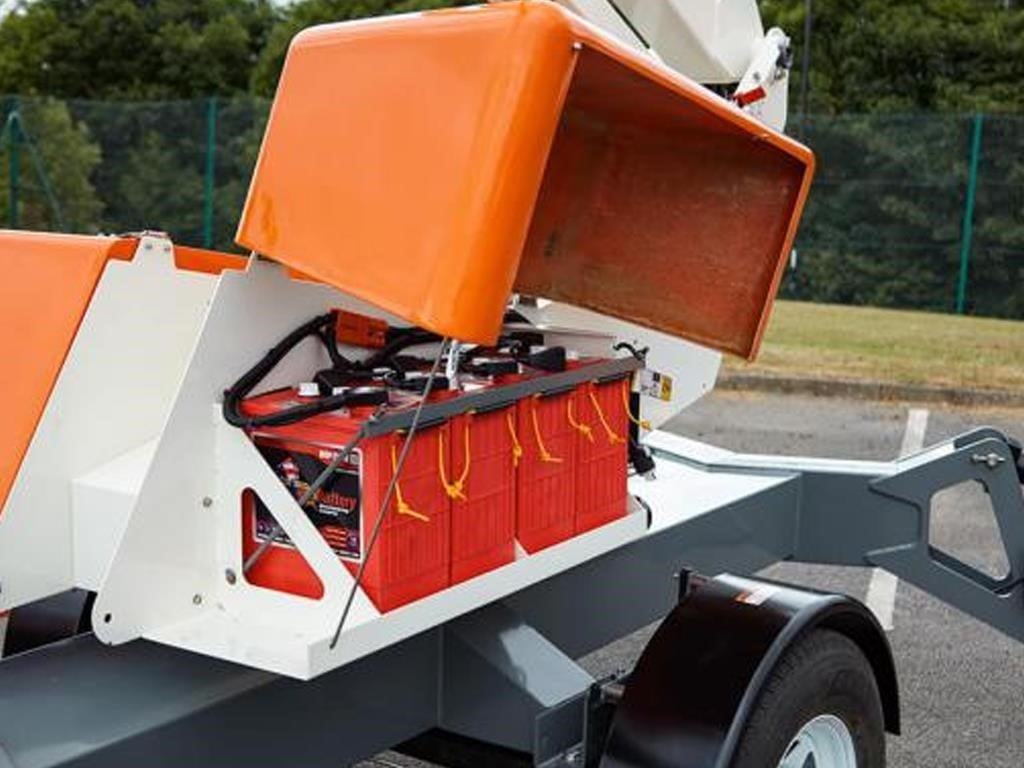

| Battery | 4 x 6V 195Ah |
| Superstructure rotation (non-continuous) | 680° |
