Snorkel TL39
SNORKEL TOWABLE BOOM LIFT — TL39

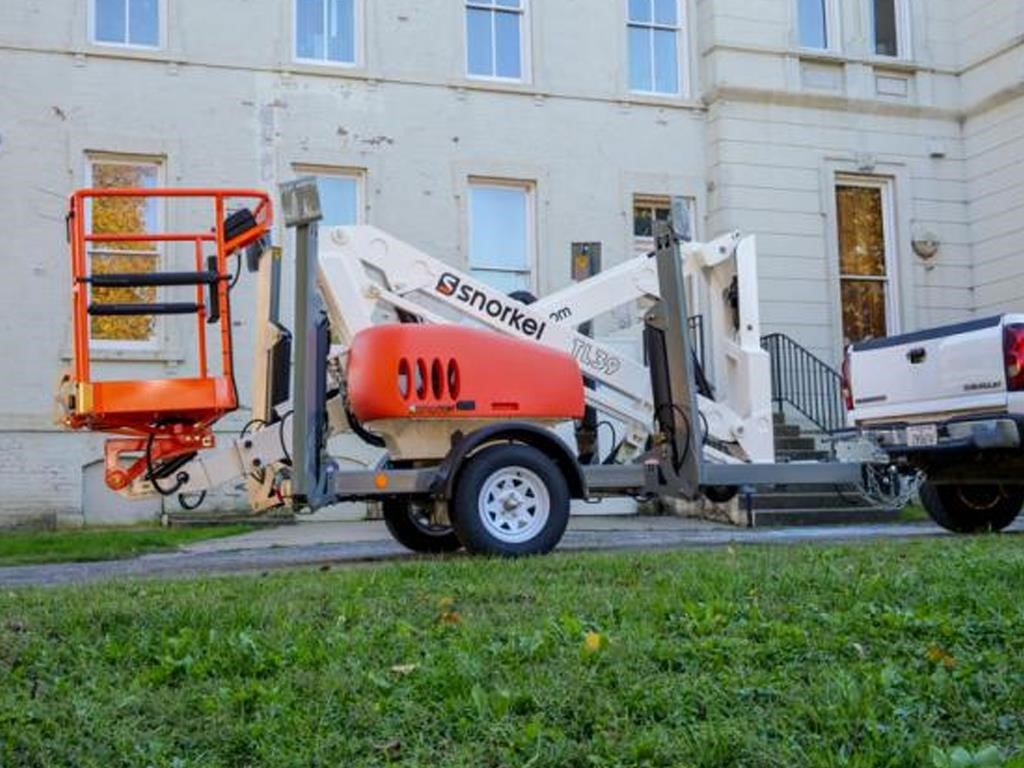

EASILY PORTABLE

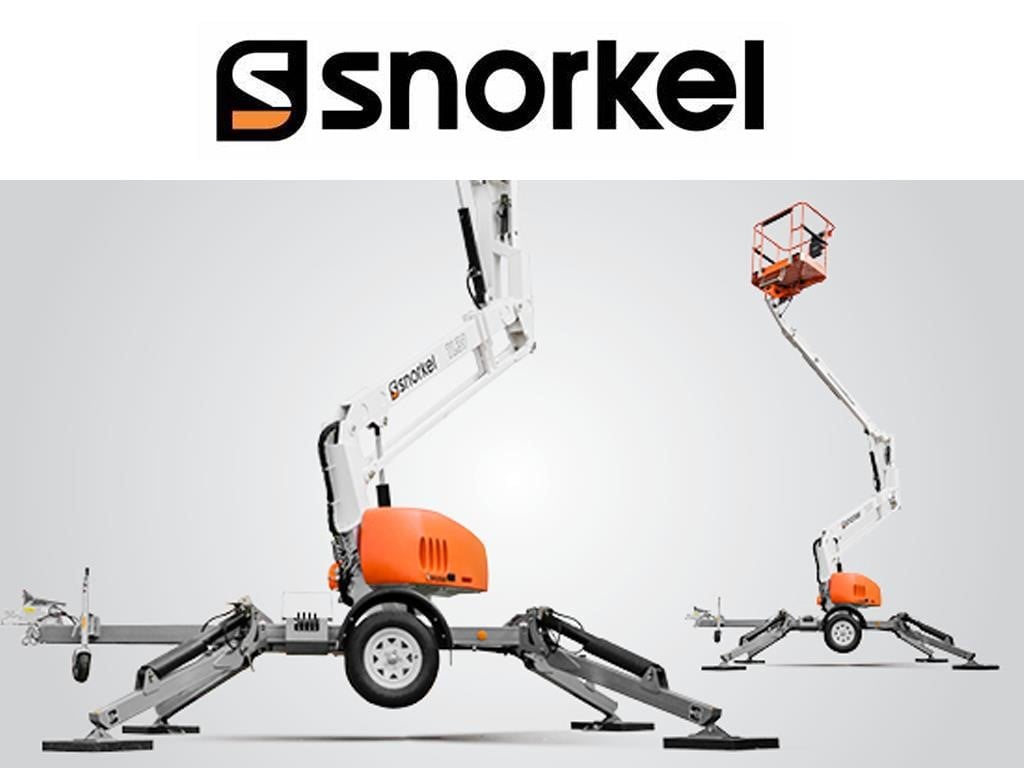

The Snorkel TL39 is a compact articulating/telescopic trailer boom. Easy to stow and tow this boom lift is also simple to operate. An excellent working envelope provides high performance in a range of applications. Hydraulically powered fold-down outriggers come as standard with optional auto-leveling.
FEATURES

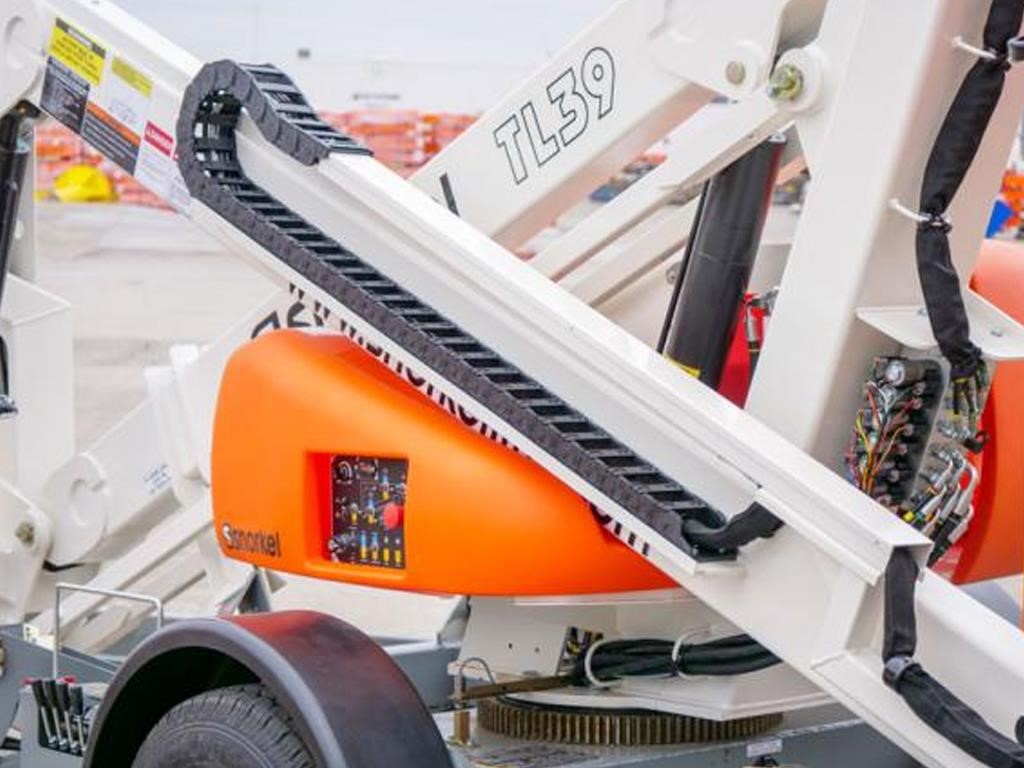

• Articulating/telescopic boom configuration

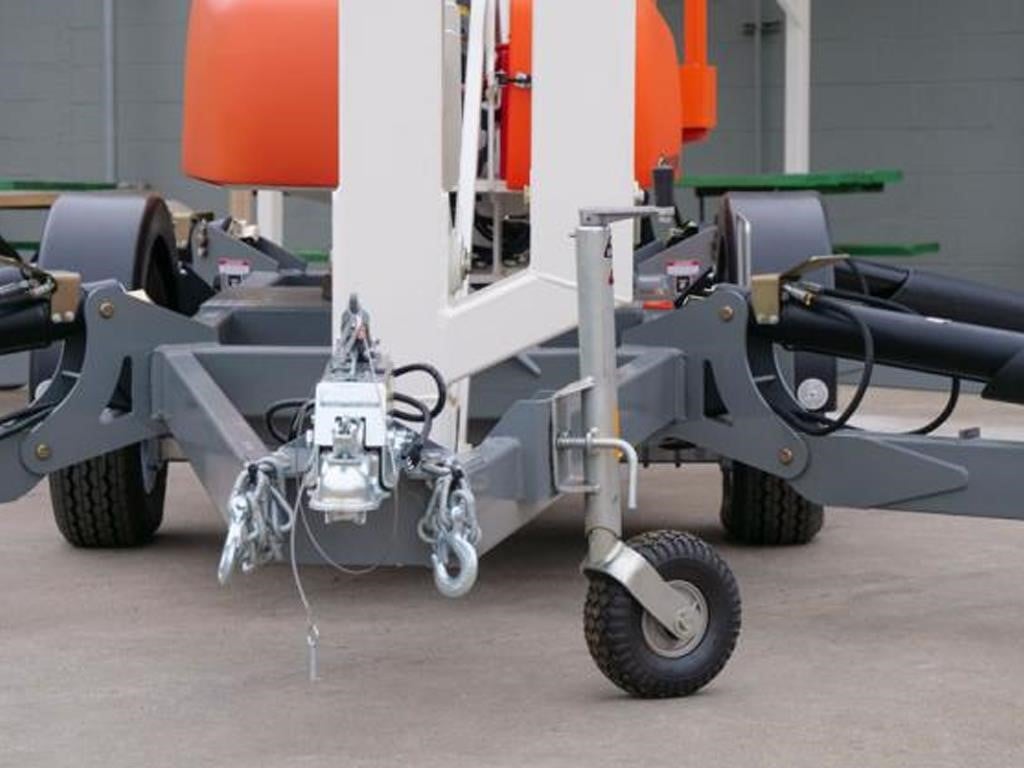

• Hydraulic outriggers

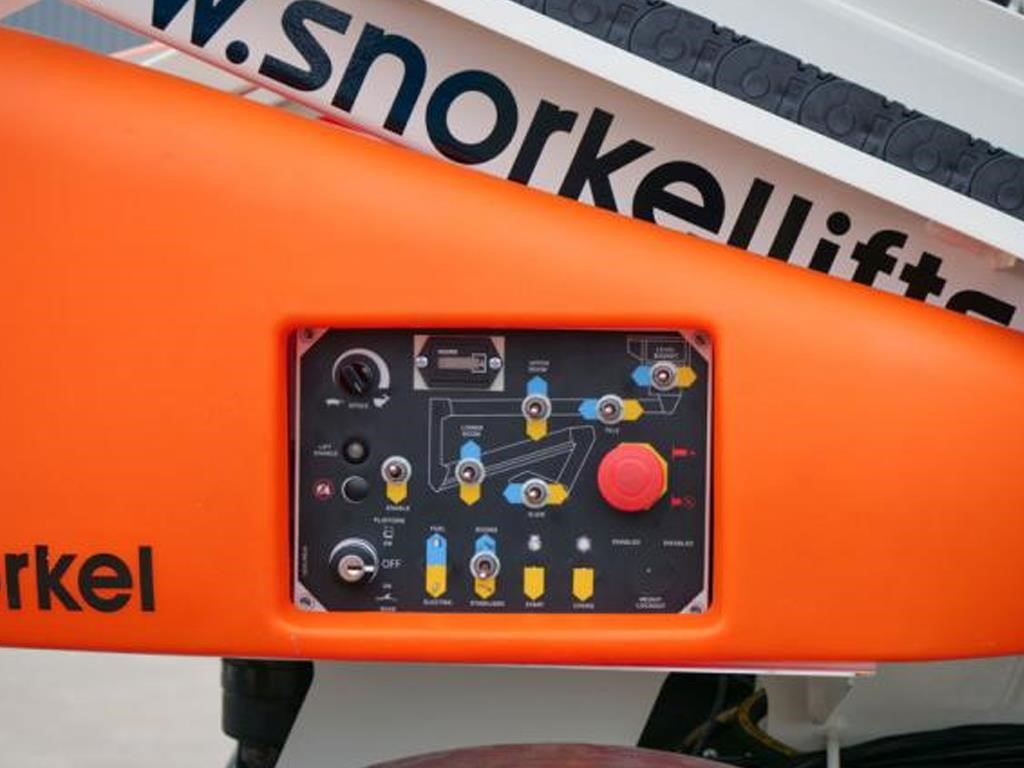

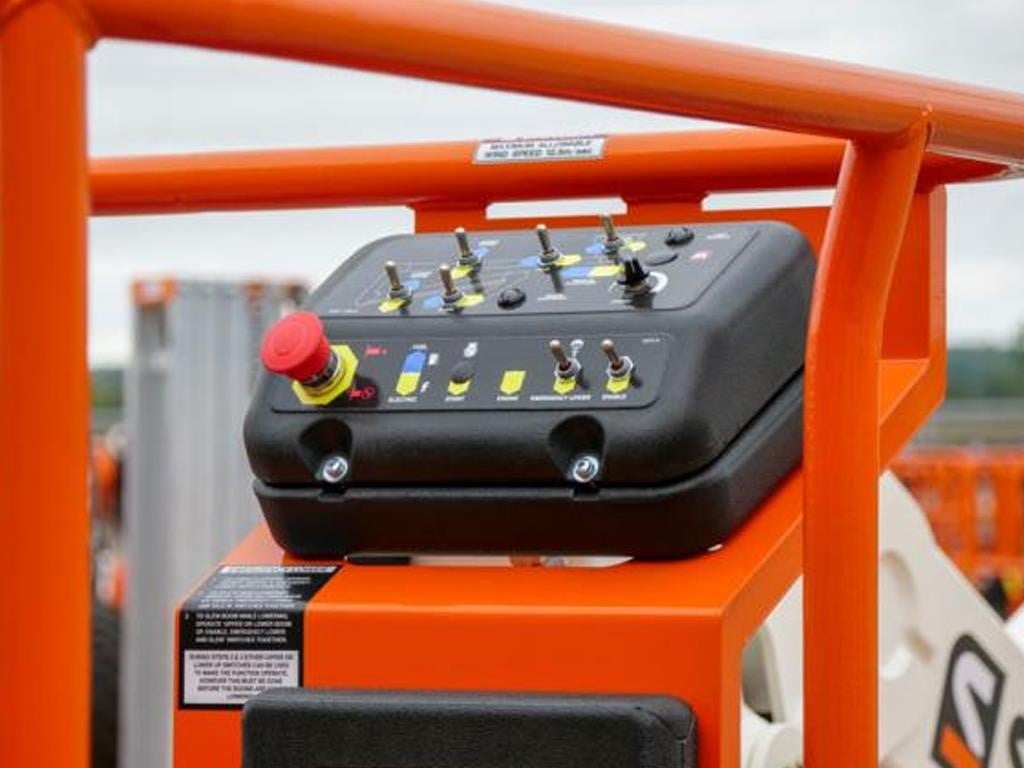

• Electric controls at platform
• Power line to platform
• Hydraulic platform rotate
• Integral road lighting board
• Integrated automatic battery charger 110V-230V
• Dual lanyard attachment points
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Work lights in platform
• Airline to platform
• Flashing amber light
• Nylon spreader pads (set of 4)
• Environmental hydraulic oil
• Snorkel OnSite telematics
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications
| Platform capacity (SWL) | 475 lbs |
|---|---|
| Platform depth | 2 ft 4 in |
| Max. platform height | 37 ft 9 in |
| Max. working height | 43 ft 9 in |
| Stowed height | 6 ft 7 in |
| Max. horizontal reach | 21 ft |
| Towing width | 5 ft 3 in |
| Towing length | 16 ft 8 in |
| Platform width | 4 ft 1 in |
| Weight | 3,703 lbs |

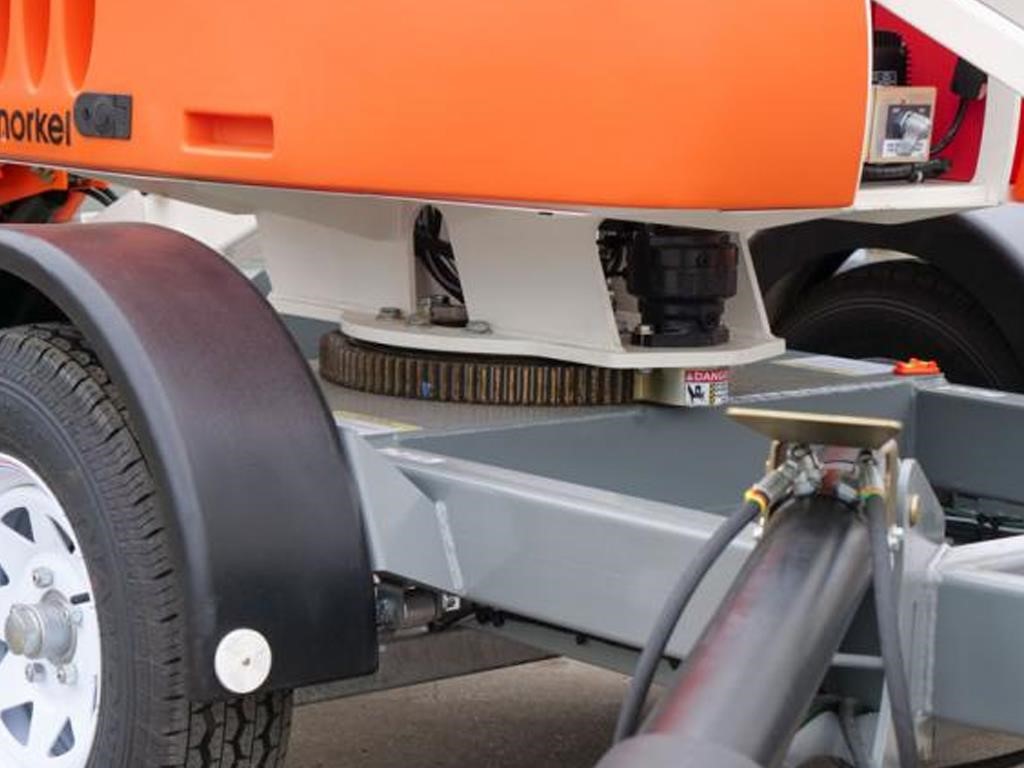

| Superstructure rotation (non-continuous) | 540° |
| Max. wind speed | 28 mph |
| Stabilizer footprint | 13 ft 1 in x 11 ft 10 in |
| Power options | Gasoline; bi-energy (combustion & battery); AC electric, diesel |

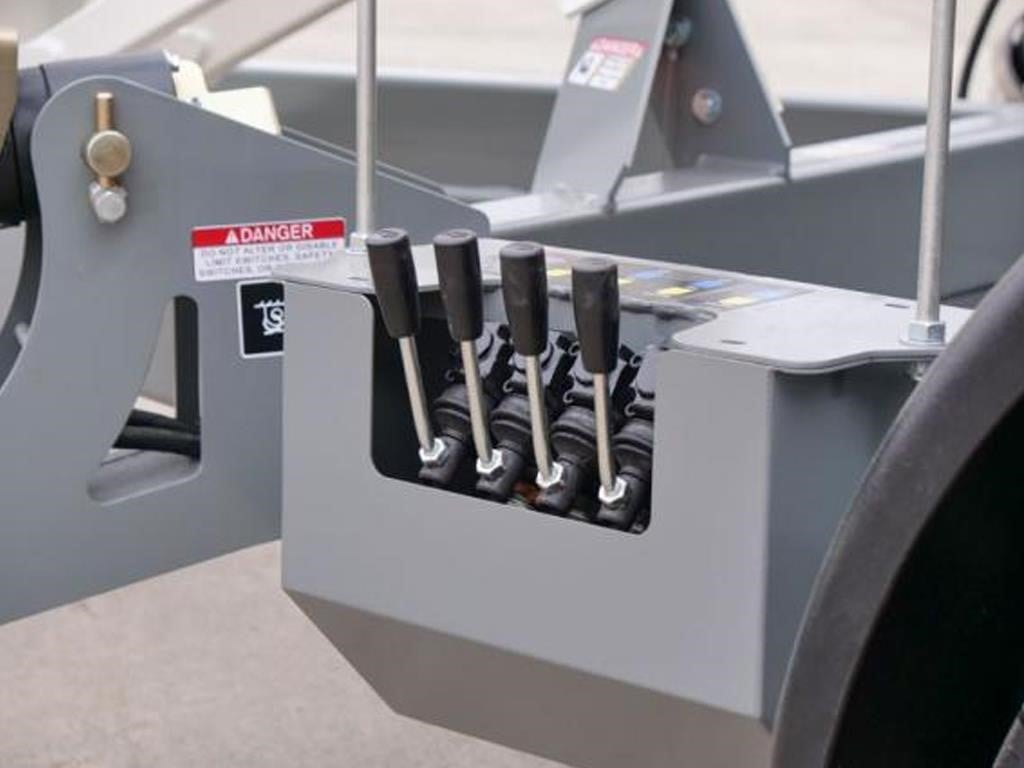

| Controls | Electric over hydraulic, variable speed |
| Wheels | 185R14 C8 |
| Power source | 24V DC battery |
