SNORKEL ARTICULATED BOOM LIFTS — A46JRT
THE POWER OF PRECISION
Snorkel articulated diesel booms combine superb working envelopes with power & precision for full versatility at height. Articulated jibs deliver improved reach, and Snorkel Guard secondary guarding system is fitted as standard on all Snorkel boom lifts.

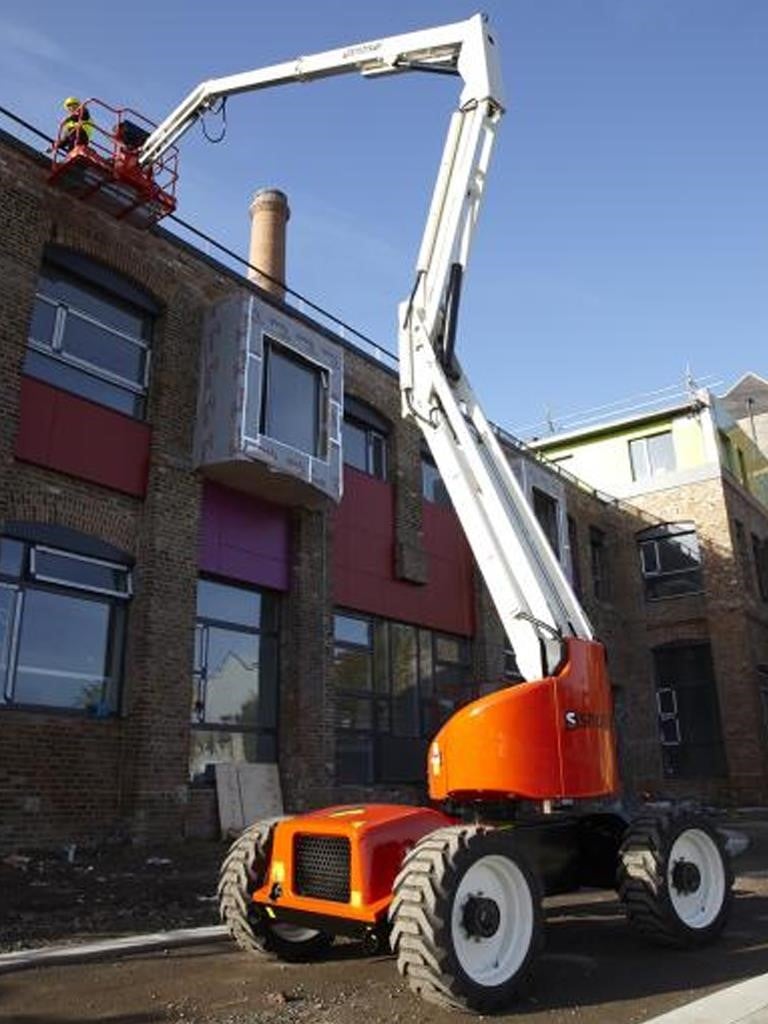

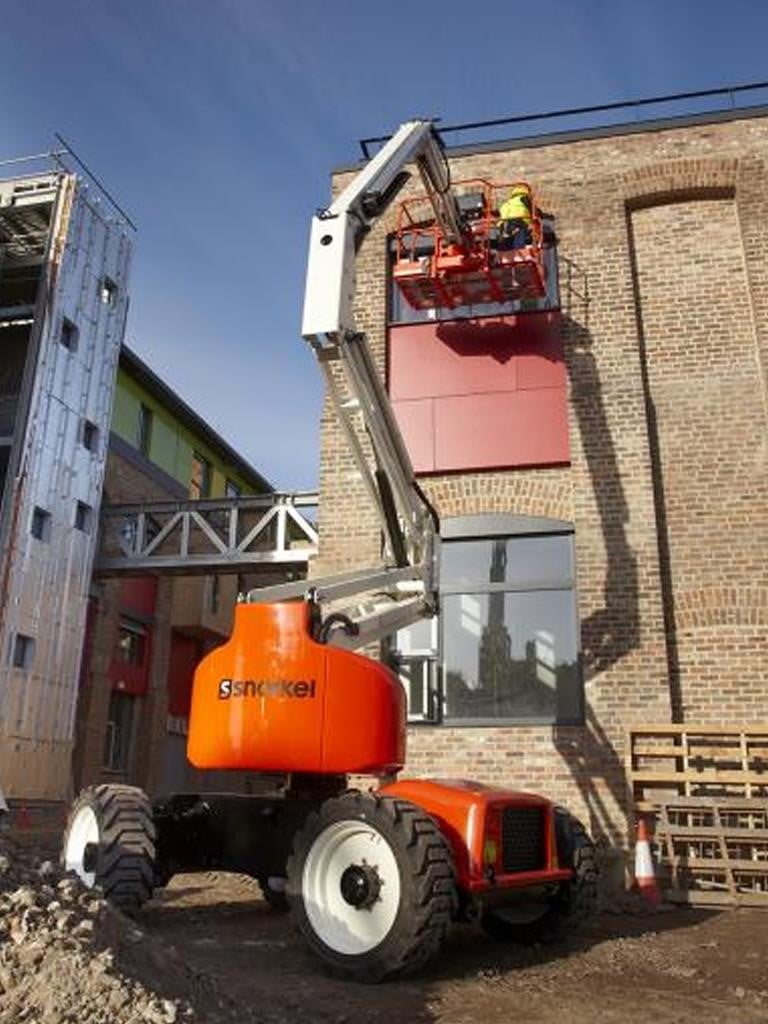

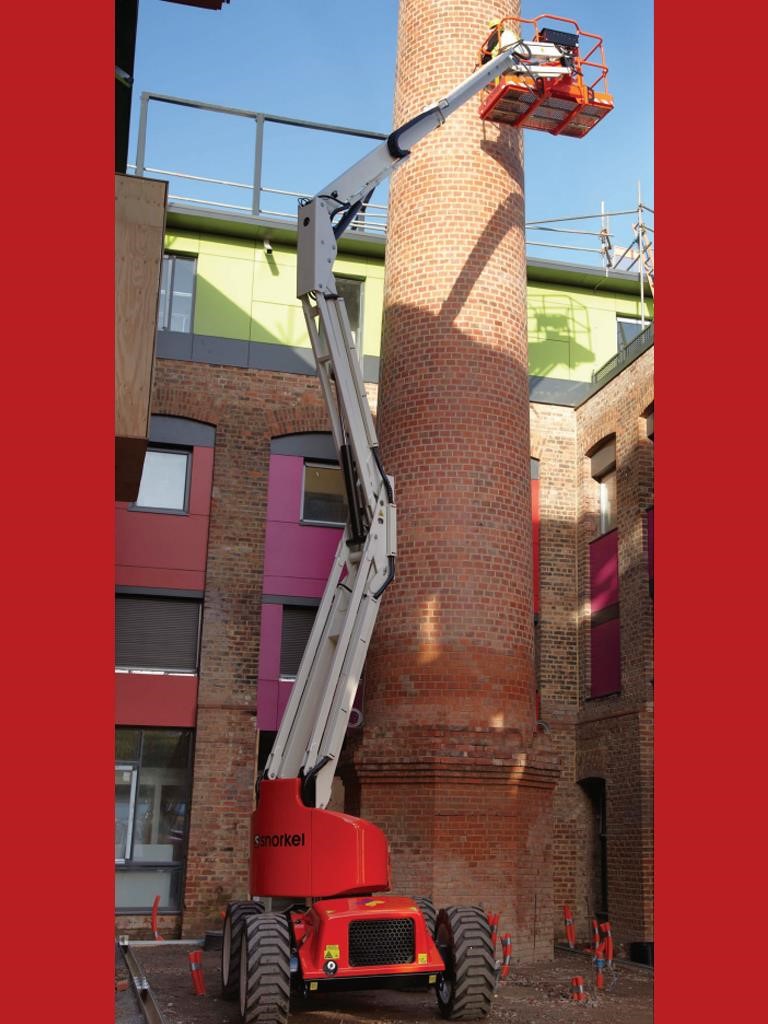

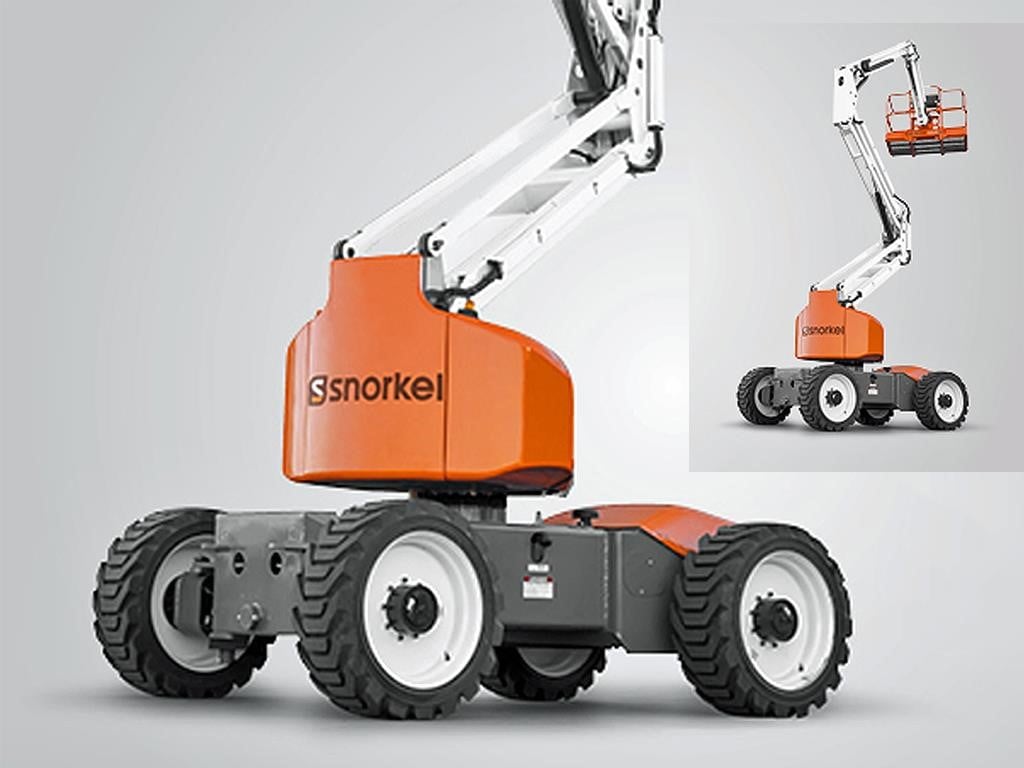

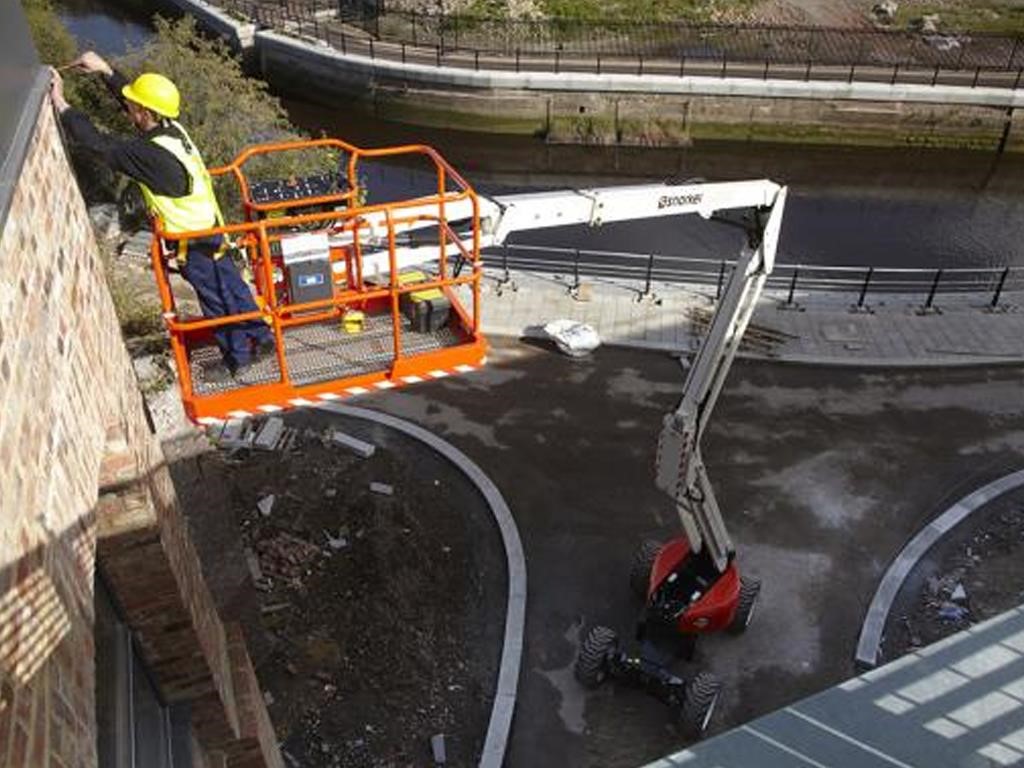

The class-leading Snorkel A46JRT articulating boom lift delivers precise reach & powerful rough terrain performance. Its up-&-over capabilities provide exceptional maneuverability with an articulated jib as standard for extended reach a tight turning radius & zero tailswing make the A46JRT a flexible & versatile machine for hard-to-reach places.
ARTICULATED BOOM LIFTS
• Class-leading articulated boom lifts
• Choose from electric or rough terrain diesel models
• Highly maneuverable with tight turning radius
• Superb working envelope with zero tailswing
• Robust, reliable and easy to operate
STANDARD FEATURES

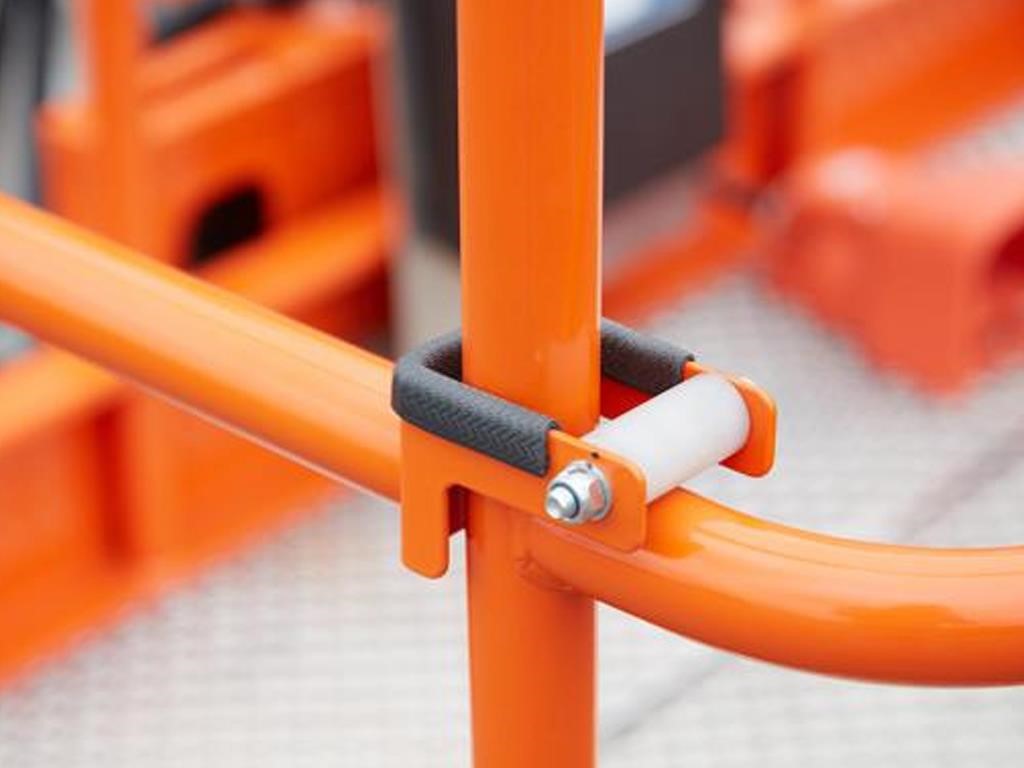

• Snorkel Guard™ secondary guarding system
• Multi-function proportional controls
• Zero tailswing
• Oscillating front axle
• Tri-entry platform
• Foam filled lug tires
• Power line to platform
• Hour meter & on-board diagnostics display
• Tilt alarm
• Horn
• Drive motion alarm
• Flashing amber light
• Platform overload system
• 2 year parts & labor, 5 year structural warranty
• ANSI compliant
OPTIONS
• Special paint colors
• AC generator 110V/240V 2kW
• Airline to platform
• Non-marking tires
• Pneumatic tires
• 5’ aluminum platform with swing gate
• Dual fuel
• Environmental hydraulic oil
• 1.52m aluminum platform with swing gate
• Aircraft package
• Deluxe aircraft package
• Cold weather package
• Extreme cold weather package
• Extreme environment package
• Light package
• Glazier package
• Tool tray
• Pipe rack
• Utility package
• Personal fall arrest system
• Snorkel OnSite™ telematics
ACCESSORY PACKAGES
• Aircraft Package
• Cold Weather Package
• Deluxe Aircraft Package
• Extreme Cold Weather Package
• Extreme Environment Package
• Lights Package
• Utility Package
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
| SPECIFICATIONS - Max. working height: | 52 ft 11 in |
|---|---|
| SPECIFICATIONS - Max. platform height: | 46 ft 11 in |
| SPECIFICATIONS - Clearance height at max. outreach: | 25 ft 2 in |
| SPECIFICATIONS - Stowed height: | 7 ft 2 in |
| SPECIFICATIONS - Max. drive height: | 46 ft 11 in |
| SPECIFICATIONS - Overall length: | 18 ft 8 in |
| SPECIFICATIONS - Max. horizontal reach: | 24 ft 11 in |
| SPECIFICATIONS - Inside turning radius: | 2 ft 8 in |
| SPECIFICATIONS - Ground clearance: | 13 in |
| SPECIFICATIONS - Controls: | Proportional |
| SPECIFICATIONS - Drive system: | 4 wheel drive |
| drive: | 4WD |
| SPECIFICATIONS - Gradeability: | 45% |
| SPECIFICATIONS - Weight: | 16,620 lbs |
| SPECIFICATIONS - Jib length: | 5 ft |
| SPECIFICATIONS - Jib arc: | 140° |
| SPECIFICATIONS - Power source: | Kubota V1505 24.9hp diesel - Tier 4 Final |
| SPECIFICATIONS - Max. drive speed (stowed): | 3.2 mph |
| SPECIFICATIONS - Chassis width: | 6 ft 10 in |
| SPECIFICATIONS - Platform capacity (SWL): | 500 lbs |
| SPECIFICATIONS - Superstructure rotation: | 360° non-continuous |
| SPECIFICATIONS - Raise / lower time: | 101 / 98 sec |
| SPECIFICATIONS - Max. wind speed: | 28 mph |
| SPECIFICATIONS - Max. drive speed (elevated): | 0.8 mph |
| SPECIFICATIONS - Tailswing: | 0 in |
| SPECIFICATIONS - Outside turning radius: | 10 ft 5 in |
| SPECIFICATIONS - Tires: | Foam filled lug 355/55D625 |
| SPECIFICATIONS - Platform rotation: | 160° |
| SPECIFICATIONS - Platform size: | 39 in x 72 in |
