Snorkel A38E

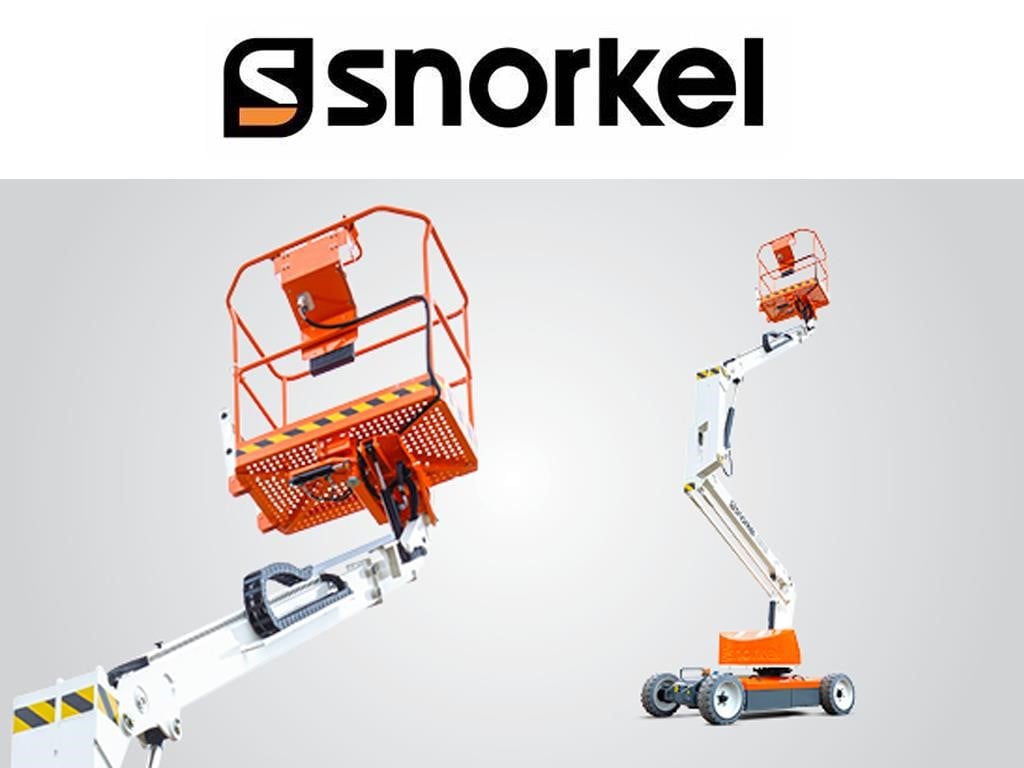

SNORKEL ELECTRIC BOOM LIFTS — A38E
LONG LASTING DRIVE
Snorkel industry leading electric articulating & mast boom lift combine superb maneuverability with clean quiet operation. The battery-powered machines deliver working heights of up to 52 ft. (16m) with zero emissions.

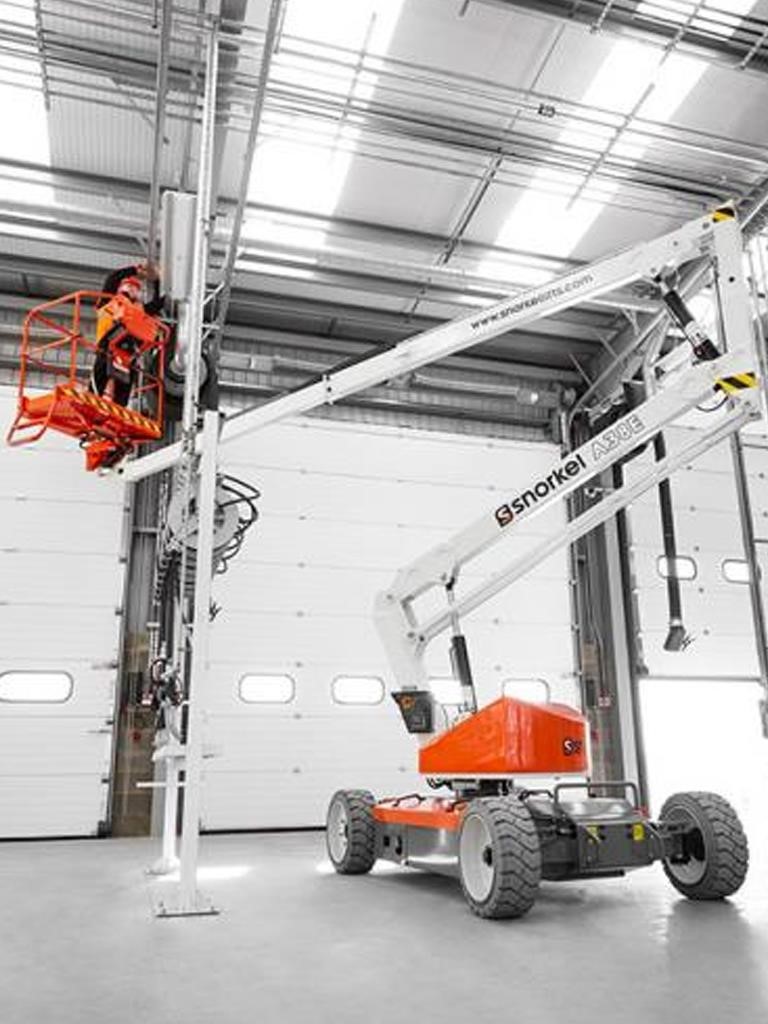

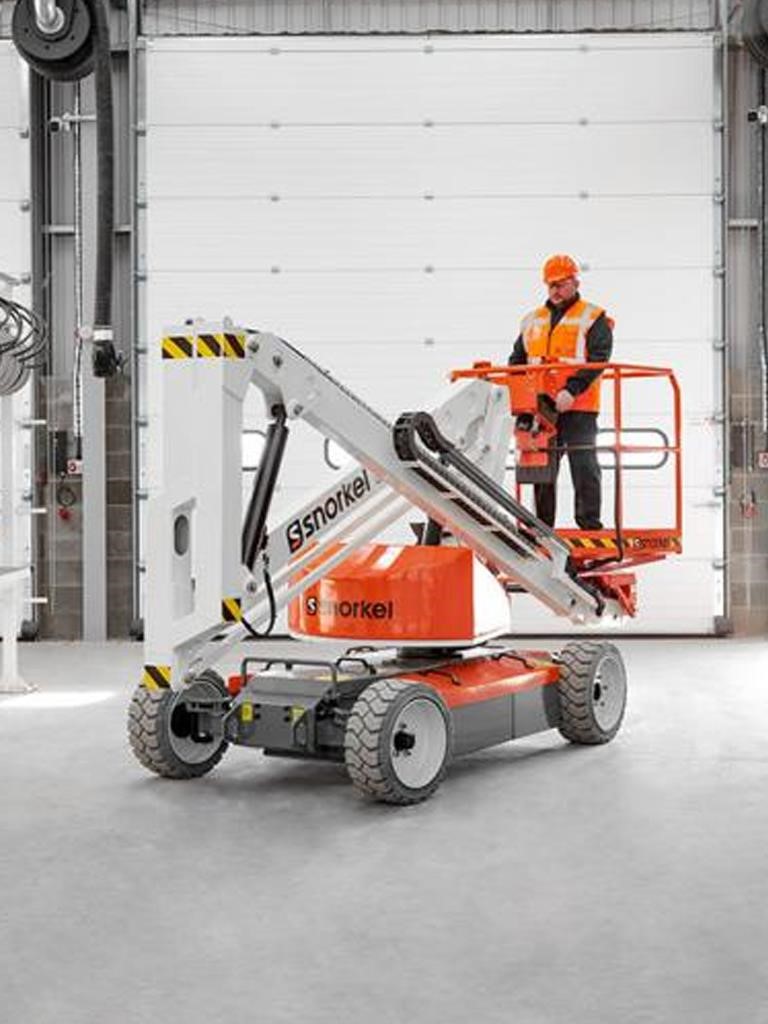

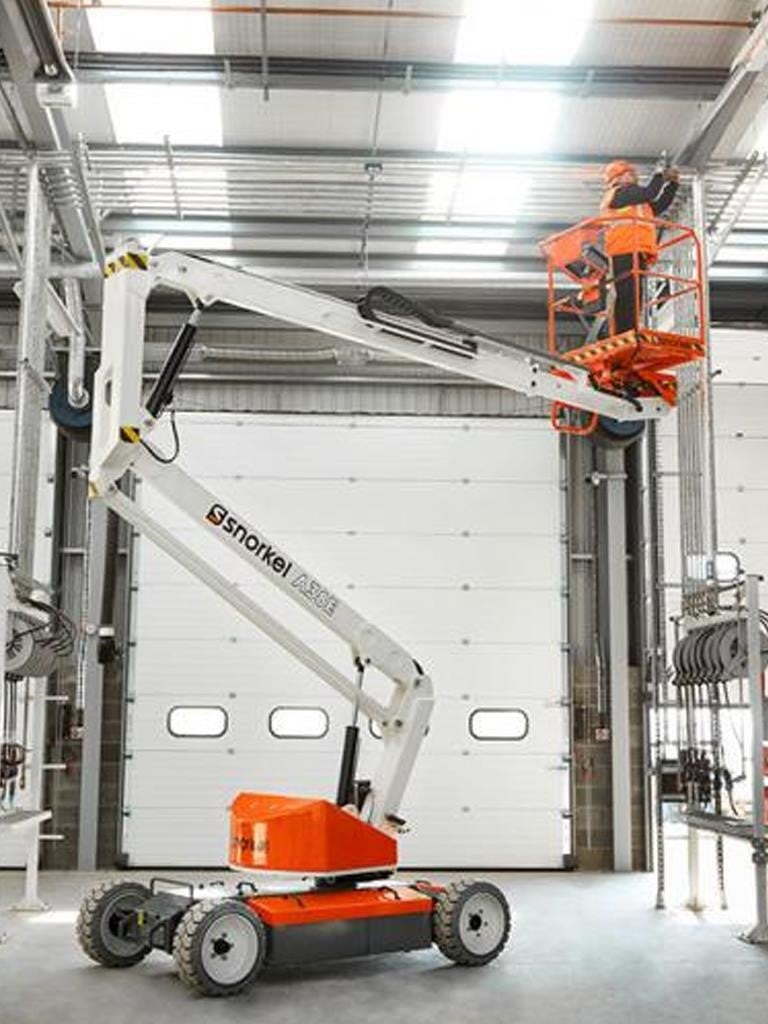

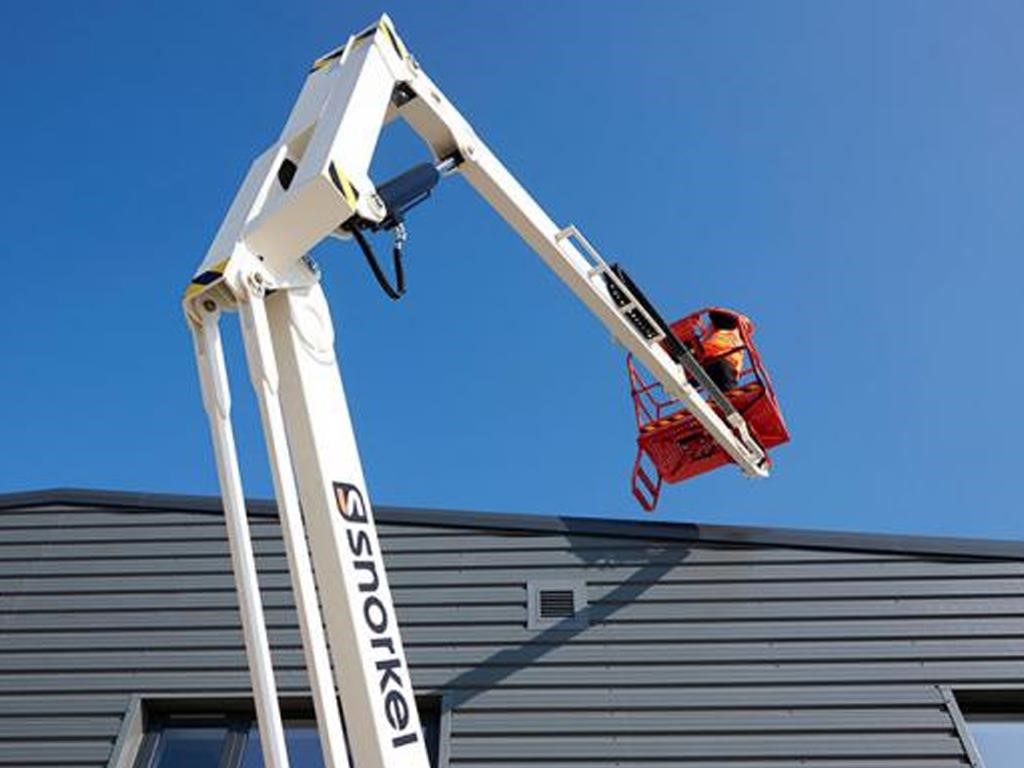

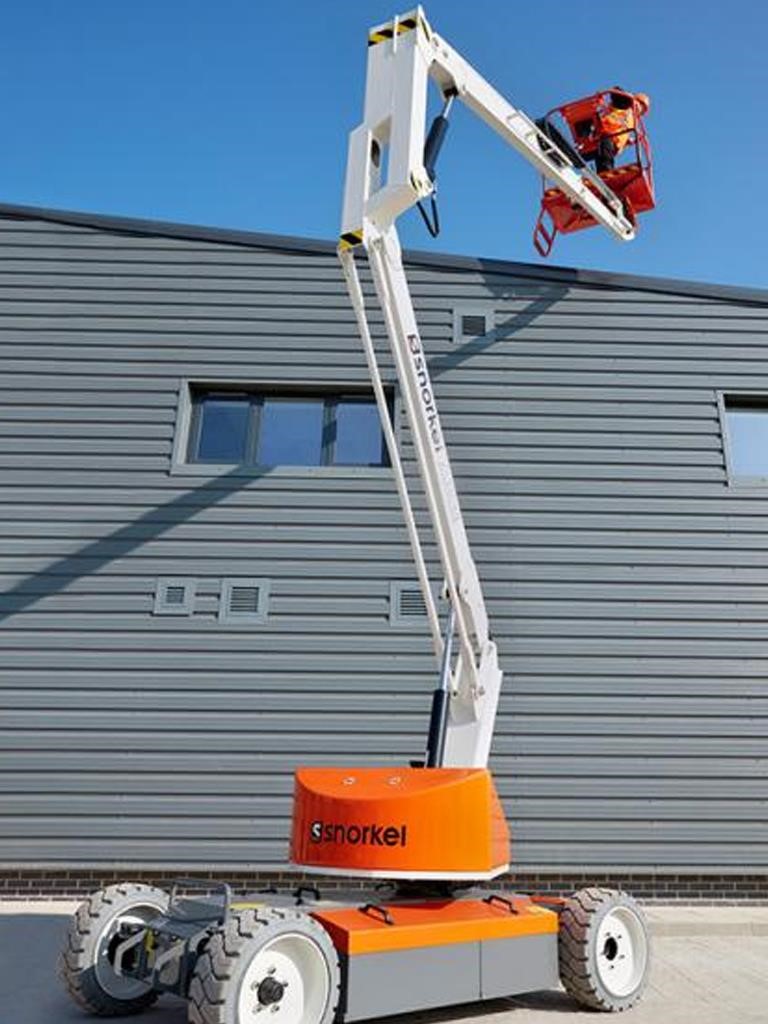

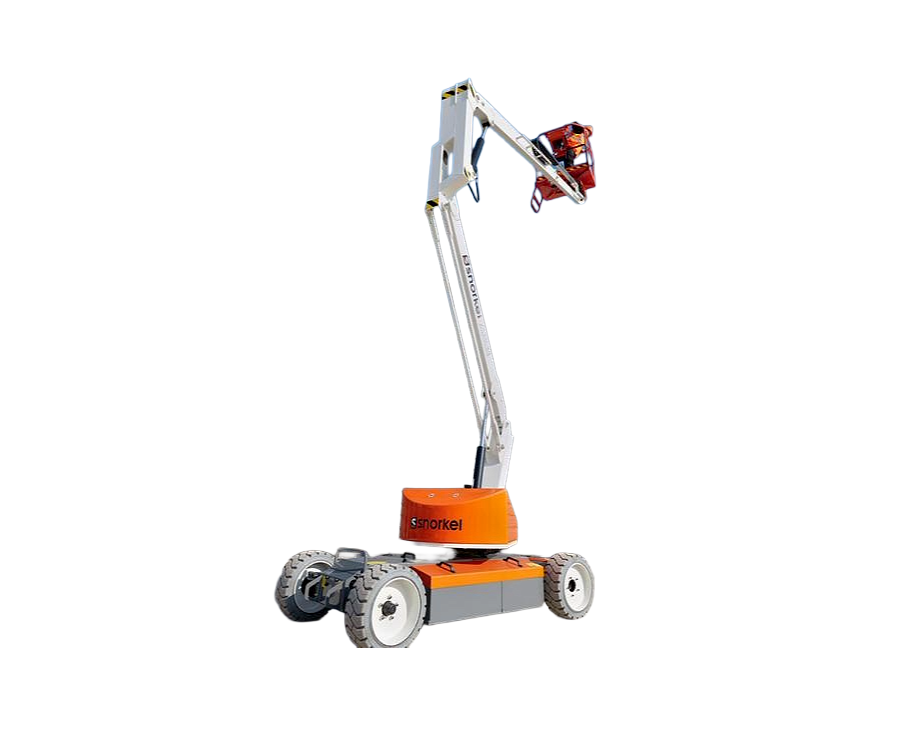

The class-leading Snorkel A38E electric articulated boom lift deliver an impressive height-to-weight ratio ideal for jobsite with reduce floor loading. Featuring powered platform rotation the A38E has a superb working envelope & proportional control for precise positioning with efficient electric drive this durable electric boom can travel up to 10 miles (16km) on a single charge (under test conditions).
FEATURES
• Snorkel GuardTM secondary guarding system
• Proportional controls
• Hydraulic platform rotation
• Minimal front boom overhang
• Ultra-tight inside turning radius
• Tilt alarm
• Direct DC drive
• Non-marking tires
• Integrated battery charger 90-240V 25A 50/60Hz
• Hour meter & on-board diagnostics display
• Horn
• Flashing amber light
• Drive motion alarm
• Power line to platform
• 2 year parts & labor, 5 year structural warranty
OPTIONS
• Special paint colors
• Environmental hydraulic oil
• Snorkel OnSite telematics
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
| SPECIFICATIONS - Max. platform height: | 37 ft 7 in |
|---|---|
| SPECIFICATIONS - Platform size (inside): | 27.1 in x 43.7 in |
| SPECIFICATIONS - Max. working height: | 43 ft 7 in |
| SPECIFICATIONS - Max. drive height: | 37 ft 7 in |
| SPECIFICATIONS - Stowed height: | 6 ft 8 in |
| SPECIFICATIONS - Overall length: | 13 ft 4.8 in |
| SPECIFICATIONS - Overall width: | 4 ft 11 in |
| SPECIFICATIONS - Outside turning radius: | 7 ft 10 in |
| SPECIFICATIONS - Inside turning radius: | 3 ft 8 in |
| SPECIFICATIONS - Ground clearance: | 4.7 in |
| SPECIFICATIONS - Clearance height at max. outreach: | 17 ft 9 in |
| SPECIFICATIONS - Max. wind speed: | 28 mph |
| SPECIFICATIONS - Max. drive speed (stowed): | 2.5 mph |
| SPECIFICATIONS - Power source: | 8 x 6V, 220Ah batteries |
| SPECIFICATIONS - Superstructure rotation: | 360° non-continuous |
| drive: | 2WD |
| SPECIFICATIONS - Controls: | Proportional |
| SPECIFICATIONS - Tailswing (riser boom stowed): | 55 in |
| SPECIFICATIONS - Platform capacity (SWL): | 475 lbs |
| SPECIFICATIONS - Battery charger: | 100-200V/15A |
| SPECIFICATIONS - Tailswing (riser boom elevated): | 0 in |
| SPECIFICATIONS - Gradeability: | 36% |
| SPECIFICATIONS - Max. drive speed (elevated): | 0.4 mph |
| SPECIFICATIONS - Drive system: | DC direct drive |
| SPECIFICATIONS - Tires: | 22 x 9 16 non-marking rubber |
| SPECIFICATIONS - Weight: | 8,554 lbs |
| SPECIFICATIONS - Max. horizontal reach: | 20 ft |
| SPECIFICATIONS - Raise / lower time: | 83 / 68 sec |
| SPECIFICATIONS - Platform rotation: | 90° |
