Lift Heavy, Large Loads Easily

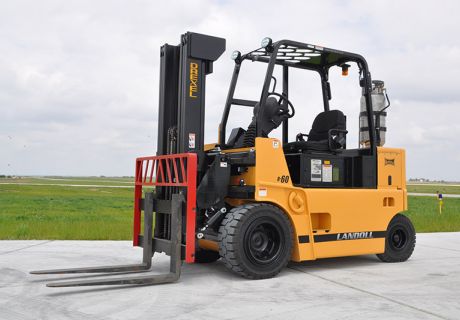

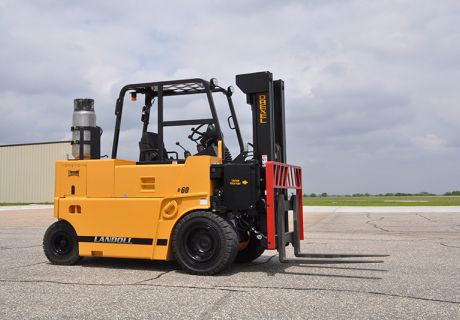

The Landoll 4-wheel Drexel R60i4 SwingMast® is an LP Gas powered, hydrostatically driven, front/side loading forklift with lift heights to 243" (6.17M) and a lift capacity of up to 6,000 lbs. (2727kg) at 24" (600mm) load center.

Versatility

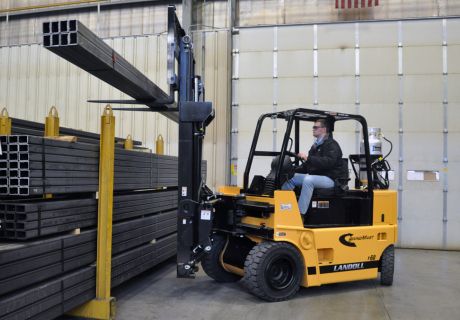

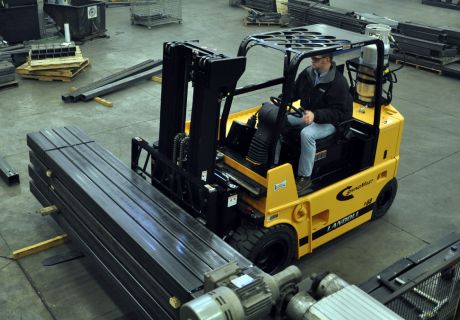

This versatile lift truck has side loading capability for long heavy loads, while maintaining front loader capability and VNA stacking ability for standard pallets. The solid pneumatic tires allow operation on any indoor or outdoor surface including gravel and dirt.

Very Narrow Aisle Capability

The R60i4 features VNA (Very Narrow Aisle) capability to make it easy to pick and place pallets and long loads in tight spaces.

Features
  • 40
  • 23
  • 6,000 lbs. (2727kg) Capacity at 24” (600mm) Load Center
  • Solid, Pneumatic-Style Drive and Steer Tires
  • Four-Wheel Design, Dual Hydrostatically Driven Front Wheels
  • All Weather Cab With Heater and Windshield Wipers is Optional
  • Neutral Start, Anti Restart, Operator Presence Seat Switch
  • Dash Display Contains Engine Coolant Temperature Gauge, Hour Meter, Clock, Warning Icons and Display Function Buttons
  • LPG Engine, GM 4.3L Tier III and LPG Fuel System (Tank Not Included)
  • Dual Joystick Hydraulic Control Levers
  • Comfortable Seated Operation with Vinyl Suspension Seat
  • Adjustable Steering Column, Key Switch, Rear View Mirror, Horn and Seatbelt
  • Hydrostatic Power Steering with Tilt Steering Wheel
  • Integrated Computer Controlled Hydrostatic Drive and Efficient Fuel System
  • Capacity (24: 6000 lbs / 2721 kg
  • Center Ground Clearance: 16 degrees
  • Engine Displacement (LPG): 4.3L
  • Fork Carriage Width: 48 in / 1219 mm
  • Fork Size (Standard) ITA Class III: 1.75x5x40 in 4.5x13x102 cm
  • Gradeability Loaded: 15%
  • Gradeability Unloaded: 15%
  • Hydrostatic TransmissionL: Forward / Reverse: Single Speed
  • Lift Speed Loaded: 85 fpm / 26 mpm
  • Lift Speed Unloaded: 87 fpm / 27 mpm
  • Load Backrest Height: 42 in / 1070 mm
  • Lost Load Center (w/Triple Mast) : 31 in / 790 mm
  • Mast Shift: 23 in / 584 mm
  • Mast Tilt: FWD/RWD: 3 / 4 degrees
  • Overall Length to Face of Forks (w/Triple Mast): 122 in / 3100 mm
  • Overall Width: 54 in / 1370 mm
  • Overhead Guard Height: 91 in / 2310 mm
  • Rear Frame Width: 52 in / 1320 mm
  • Rear Ground Clearance: 23 degrees
  • Rear Overhang: 13 in / 340 mm
  • Seat Clearance: 37 in / 930 mm
  • Side Deck Height: 52 / 1320 in / mm
  • Side Deck Width: 21 in / 530 mm
  • Travel Speed Loaded: 8 mph / 12.9 kph
  • Travel Speed Unloaded: 8 mph / 12.9 kph
  • Truck Weight with 3 stage 240: 17500 lbs / 7955 kg
  • Turning Radius: 106 in / 2690 mm
  • Underclearance: 6 in / 152.4 mm
  • Wheel Sizes Front (Solid Pneumatic in/cm Dia x Face): 28x12.5 in / 71x31.75 cm
  • Wheel SIzes Rear (Solid Pneumatic Dia x Face): 22.7x6.5 in / 58x16.5 cm
  • Wheelbase: 77 in / 1940 mm
Photos
Overview
Lift Heavy, Large Loads Easily

The Landoll 4-wheel Drexel R60i4 SwingMast® is an LP Gas powered, hydrostatically driven, front/side loading forklift with lift heights to 243" (6.17M) and a lift capacity of up to 6,000 lbs. (2727kg) at 24" (600mm) load center.

Versatility

This versatile lift truck has side loading capability for long heavy loads, while maintaining front loader capability and VNA stacking ability for standard pallets. The solid pneumatic tires allow operation on any indoor or outdoor surface including gravel and dirt.

Very Narrow Aisle Capability

The R60i4 features VNA (Very Narrow Aisle) capability to make it easy to pick and place pallets and long loads in tight spaces.

Features
Features
  • 40
  • 23
  • 6,000 lbs. (2727kg) Capacity at 24” (600mm) Load Center
  • Solid, Pneumatic-Style Drive and Steer Tires
  • Four-Wheel Design, Dual Hydrostatically Driven Front Wheels
  • All Weather Cab With Heater and Windshield Wipers is Optional
  • Neutral Start, Anti Restart, Operator Presence Seat Switch
  • Dash Display Contains Engine Coolant Temperature Gauge, Hour Meter, Clock, Warning Icons and Display Function Buttons
  • LPG Engine, GM 4.3L Tier III and LPG Fuel System (Tank Not Included)
  • Dual Joystick Hydraulic Control Levers
  • Comfortable Seated Operation with Vinyl Suspension Seat
  • Adjustable Steering Column, Key Switch, Rear View Mirror, Horn and Seatbelt
  • Hydrostatic Power Steering with Tilt Steering Wheel
  • Integrated Computer Controlled Hydrostatic Drive and Efficient Fuel System
Specs
  • Capacity (24: 6000 lbs / 2721 kg
  • Center Ground Clearance: 16 degrees
  • Engine Displacement (LPG): 4.3L
  • Fork Carriage Width: 48 in / 1219 mm
  • Fork Size (Standard) ITA Class III: 1.75x5x40 in 4.5x13x102 cm
  • Gradeability Loaded: 15%
  • Gradeability Unloaded: 15%
  • Hydrostatic TransmissionL: Forward / Reverse: Single Speed
  • Lift Speed Loaded: 85 fpm / 26 mpm
  • Lift Speed Unloaded: 87 fpm / 27 mpm
  • Load Backrest Height: 42 in / 1070 mm
  • Lost Load Center (w/Triple Mast) : 31 in / 790 mm
  • Mast Shift: 23 in / 584 mm
  • Mast Tilt: FWD/RWD: 3 / 4 degrees
  • Overall Length to Face of Forks (w/Triple Mast): 122 in / 3100 mm
  • Overall Width: 54 in / 1370 mm
  • Overhead Guard Height: 91 in / 2310 mm
  • Rear Frame Width: 52 in / 1320 mm
  • Rear Ground Clearance: 23 degrees
  • Rear Overhang: 13 in / 340 mm
  • Seat Clearance: 37 in / 930 mm
  • Side Deck Height: 52 / 1320 in / mm
  • Side Deck Width: 21 in / 530 mm
  • Travel Speed Loaded: 8 mph / 12.9 kph
  • Travel Speed Unloaded: 8 mph / 12.9 kph
  • Truck Weight with 3 stage 240: 17500 lbs / 7955 kg
  • Turning Radius: 106 in / 2690 mm
  • Underclearance: 6 in / 152.4 mm
  • Wheel Sizes Front (Solid Pneumatic in/cm Dia x Face): 28x12.5 in / 71x31.75 cm
  • Wheel SIzes Rear (Solid Pneumatic Dia x Face): 22.7x6.5 in / 58x16.5 cm
  • Wheelbase: 77 in / 1940 mm
