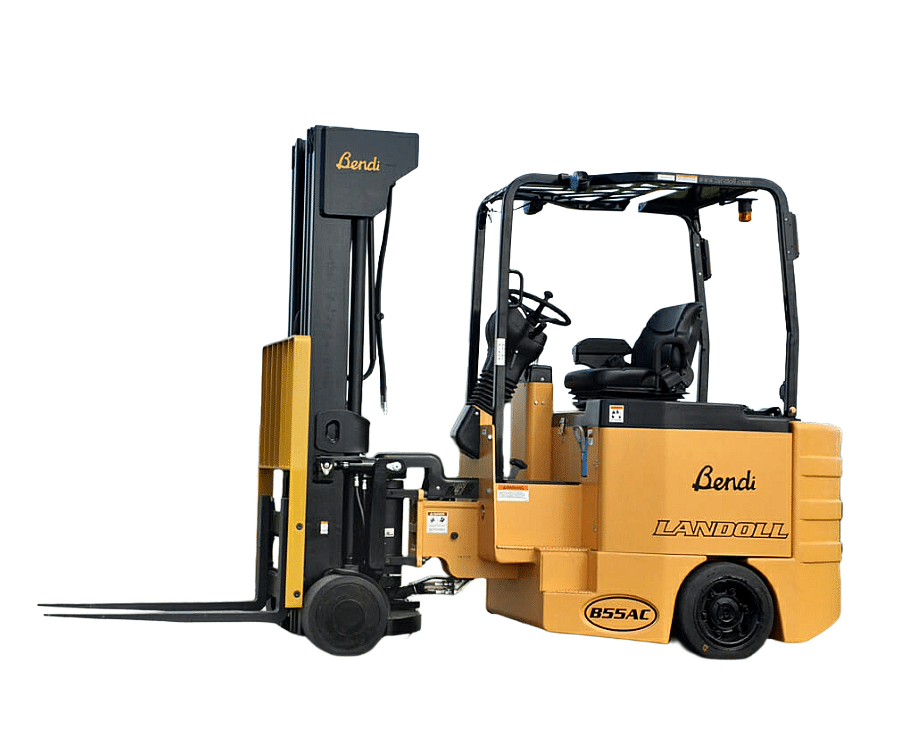

Bendi Rear Wheel Drive High Capacity, High Lift Narrow Aisle Multipurpose Electric Articulating Forklift

The Bendi model B55AC works in aisles as narrow as *84" (2.13M). The B55AC high volume model has a basic capacity of 5,500 lbs. (2500kg) at 24" (600mm) load center and has lift heights available to 30' (9.14M).

The B55AC model is a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. Excellent traction, braking and power enable climbing steep ramps with loads. Three or four stage masts are available. The B55AC can work inside and outside on paved surfaces and have a floating front axle, allowing the truck to ride smoothly over uneven floors and do the jobs of reach and counterbalanced trucks but with much heavier loads and in much narrower aisles.

Exceptional Performance and Maneuverability

Equipped with the Landoll DuraSteerTM front wheel hydraulic steering, the B55AC provides exceptional control and makes load placement and retrieval superior to the competition.

Maximizes Material Handling Productivity

The versatile Bendi B55AC forklift replaces conventional reach and counterbalanced fork trucks in standard warehouse operations. The unique design allows operators to use it as a counterbalance truck indoors or out, while operating in narrow aisles in your warehouse, replacing reach trucks that require much wider aisles. The Bendi B55AC has large diameter tires and the truck has great underclearance for avoiding floor obstructions. One truck can go from inside the dock to the rack, eliminating staging and additional operators and support forklifts.

*Based on 48” (1200mm) long x 40” (1000mm) wide load.

Features
  • Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
  • Cold Storage Conditioned to -22°F (-30°C)
  • B55AC 5,500 lb. (2500kg) Capacity at 24
  • High Visibility Mast Allows Optimum Safety and Control
  • Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • 48 Volt Electrical System
  • High Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
  • Four-Wheel Design, Dual Rear Wheel Drive Provides Excellent Power, Braking and Traction
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • Battery Compartment Height: 19 in / 48 cm
  • Capacity: 5500 lbs / 2500 kg
  • Chassis Width: 56 in / 142 cm
  • Floor Height: 31 in / 79 cm
  • Fork Carriage Width: 41 in / 104 cm
  • Fork Length: 40 in / 104 cm
  • Front Wheel Size (2 each poly): 14x8 in / 36x15 cm
  • Gradeability : 15% Loaded and Unloaded
  • Hydraulic Controller: AC
  • Hydraulic Motor Rating: AC / 16.8
  • Intersecting Aisle: 48-in.L x 40-in.W (122 x 102cm): 114 in / 289 cm
  • Lift Speed (Loaded): 90 fpm / 27.4 mpm
  • Lift Speed (Unloaded) : 110 fpm / 27.4 mpm
  • Load Center: 24 in / 600 mm
  • Lost Load Center: 12 in / 310 cm
  • Lowering Speed (Loaded): 100 fpm / 30.5 mpm
  • Lowering Speed (Unloaded): 90 fpm / 27.4 mpm
  • Mast Tilt: FWD/RWD (up to 293
  • Overall Length to Face of Forks: 113 in / 287 cm
  • Overhead Guard Height: 89 in / 226 cm
  • Overhead Guard Width: 46 in / 117 cm
  • Power Source: 48 Volt Battery
  • Rear Overhang: 31.7 in / 81 cm
  • Rear Wheel Size (2 each rubber): 18x9 in / 46x23 cm
  • Right Angle Stacking Aisle: 48-in.L x 40-in.W (122 x 102cm) : 84 in / 213 cm
  • Traction Controller: AC
  • Traction Motor Rating: AC / 7.5 ea. - 15 Total
  • Travel Speed (Loaded) : 6.5 mph / 10.5 kph
  • Travel Speed (Unloaded): 7 mph / 11.3 kph
  • Underclearance: 3 in / 7.6 cm
  • Weight with Battery: 16950 lbs / 7705 kg
  • Wheelbase: 69 in / 175 cm
Overview
Bendi Rear Wheel Drive High Capacity, High Lift Narrow Aisle Multipurpose Electric Articulating Forklift

The Bendi model B55AC works in aisles as narrow as *84" (2.13M). The B55AC high volume model has a basic capacity of 5,500 lbs. (2500kg) at 24" (600mm) load center and has lift heights available to 30' (9.14M).

The B55AC model is a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. Excellent traction, braking and power enable climbing steep ramps with loads. Three or four stage masts are available. The B55AC can work inside and outside on paved surfaces and have a floating front axle, allowing the truck to ride smoothly over uneven floors and do the jobs of reach and counterbalanced trucks but with much heavier loads and in much narrower aisles.

Exceptional Performance and Maneuverability

Equipped with the Landoll DuraSteerTM front wheel hydraulic steering, the B55AC provides exceptional control and makes load placement and retrieval superior to the competition.

Maximizes Material Handling Productivity

The versatile Bendi B55AC forklift replaces conventional reach and counterbalanced fork trucks in standard warehouse operations. The unique design allows operators to use it as a counterbalance truck indoors or out, while operating in narrow aisles in your warehouse, replacing reach trucks that require much wider aisles. The Bendi B55AC has large diameter tires and the truck has great underclearance for avoiding floor obstructions. One truck can go from inside the dock to the rack, eliminating staging and additional operators and support forklifts.

*Based on 48” (1200mm) long x 40” (1000mm) wide load.

Features
Features
  • Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
  • Cold Storage Conditioned to -22°F (-30°C)
  • B55AC 5,500 lb. (2500kg) Capacity at 24
  • High Visibility Mast Allows Optimum Safety and Control
  • Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • 48 Volt Electrical System
  • High Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
  • Four-Wheel Design, Dual Rear Wheel Drive Provides Excellent Power, Braking and Traction
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
Specs
  • Battery Compartment Height: 19 in / 48 cm
  • Capacity: 5500 lbs / 2500 kg
  • Chassis Width: 56 in / 142 cm
  • Floor Height: 31 in / 79 cm
  • Fork Carriage Width: 41 in / 104 cm
  • Fork Length: 40 in / 104 cm
  • Front Wheel Size (2 each poly): 14x8 in / 36x15 cm
  • Gradeability : 15% Loaded and Unloaded
  • Hydraulic Controller: AC
  • Hydraulic Motor Rating: AC / 16.8
  • Intersecting Aisle: 48-in.L x 40-in.W (122 x 102cm): 114 in / 289 cm
  • Lift Speed (Loaded): 90 fpm / 27.4 mpm
  • Lift Speed (Unloaded) : 110 fpm / 27.4 mpm
  • Load Center: 24 in / 600 mm
  • Lost Load Center: 12 in / 310 cm
  • Lowering Speed (Loaded): 100 fpm / 30.5 mpm
  • Lowering Speed (Unloaded): 90 fpm / 27.4 mpm
  • Mast Tilt: FWD/RWD (up to 293
  • Overall Length to Face of Forks: 113 in / 287 cm
  • Overhead Guard Height: 89 in / 226 cm
  • Overhead Guard Width: 46 in / 117 cm
  • Power Source: 48 Volt Battery
  • Rear Overhang: 31.7 in / 81 cm
  • Rear Wheel Size (2 each rubber): 18x9 in / 46x23 cm
  • Right Angle Stacking Aisle: 48-in.L x 40-in.W (122 x 102cm) : 84 in / 213 cm
  • Traction Controller: AC
  • Traction Motor Rating: AC / 7.5 ea. - 15 Total
  • Travel Speed (Loaded) : 6.5 mph / 10.5 kph
  • Travel Speed (Unloaded): 7 mph / 11.3 kph
  • Underclearance: 3 in / 7.6 cm
  • Weight with Battery: 16950 lbs / 7705 kg
  • Wheelbase: 69 in / 175 cm
