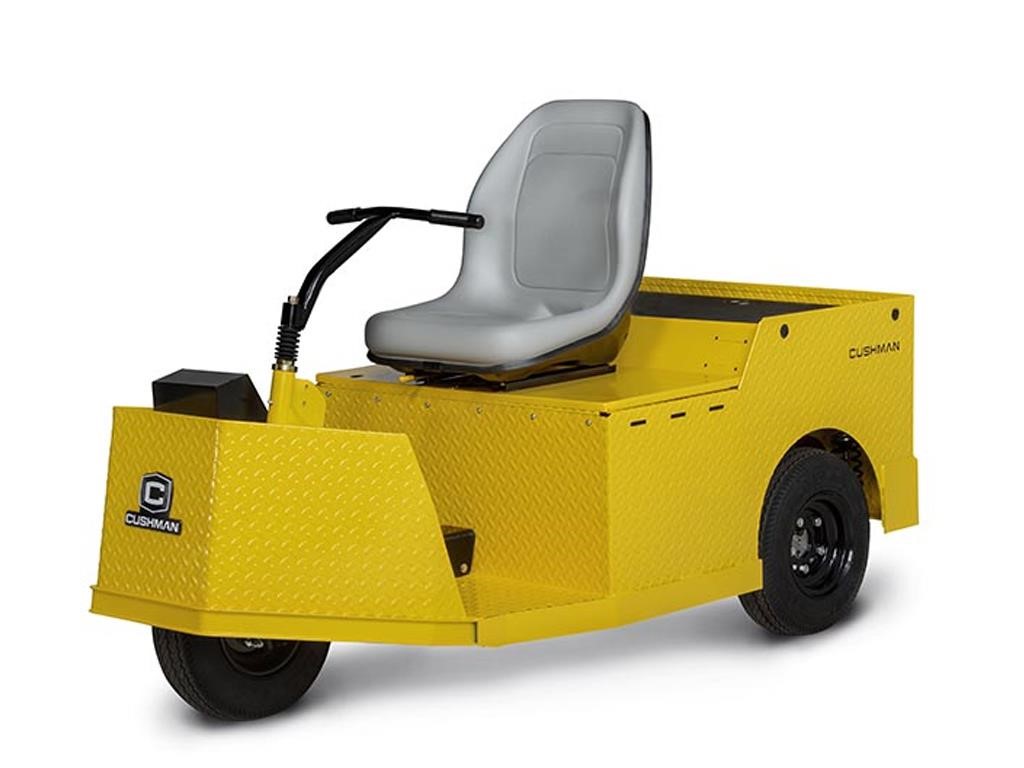

With the Tug, everything becomes mobile.


The Tug's impressive towing capacity
makes it ideal for facilities that regularly
transport heavy materials or industrial
equipment. It's built to help you pull
through big tasks and quietly get
everything where it needs to be.

  • 5,000-lb and 8,000-lb towing capacities
  • 4.9-sq-ft cargo deck
  • 36V DC powertrain


Features
  • Batteries: Six, 6V Deep Cycle
  • Batteries: Six, 6V Deep Cycle
  • Battery Charger: 36 VDC On-Board
  • Battery Charger: 36 VDC On-Board
  • Body and Finish: 1 piece, 4-way Embossed Diamond Pattern
  • Body and Finish: 1 piece, 4-way Embossed Diamond Pattern
  • Cargo Box Depth (Inside): 1.75 in (4.4 cm)
  • Cargo Box Depth (Inside): 1.75 in (4.4 cm)
  • Cargo Box Length (Inside): 21.0 in (53 cm)
  • Cargo Box Length (Inside): 21.0 in (53 cm)
  • Cargo Box Width (Inside): 33.5 in (85 cm)
  • Cargo Box Width (Inside): 33.5 in (85 cm)
  • Curb Weight: 940 lb (430 kg)
  • Curb Weight: 940 lb (426 kg)
  • Differential: Worm Gear Driven
  • Differential: Worm Gear Driven
  • Drivetrain: Triple 'V' Belt
  • Drivetrain: Triple 'V' Belt
  • Dry Weight: 571 lb (259 kg)
  • Dry Weight: 571lb (259 kg)
  • Electrical System: 36-Volt
  • Electrical System: 36-Volt
  • Final Drive Ratio: 22.98:1
  • Frame: Welded Steel with Powder-Coat
  • Frame: Welded Steel with Powder-Coat
  • Front and Rear Tires: USA Trail 4.80 x 8 (Load Range B) Industrial
  • Front and Rear Tires: USA Trail 4.80 x 8 (Load Range B) Industrial
  • Front Suspension: Torsion Block
  • Front Suspension: Torsion Block
  • Front Wheel Track: NA
  • Front Wheel Track: NA
  • Gear Selection: Dash-Mounted Forward-Neutral-Reverse
  • Gear Selection: Dash-Mounted Forward-Neutral-Reverse
  • Horsepower: 11.1 hp (8.28 kW) @ 1942 rpm
  • Horsepower: 11.1 hp (8.28 kW) @ 1942 rpm
  • Inside Clearance Circle (handlebar): Turnabout Rear Wheel
  • Inside Clearance Circle (handlebar): Turnabout Rear Wheel
  • Intersecting Aisle Clearance: 55 in (140 cm) minimum
  • Intersecting Aisle Clearance: 55.0 in (140 cm)
  • Key or Pedal Start: Pedal
  • Key or Pedal Start: Pedal
  • Outside Clearance Circle (handlebar): 9 ft (2.8 m)
  • Outside Clearance Circle (handlebar): 9 ft (2.8 m)
  • Overall Height: 37.0 in (94 cm)
  • Overall Height: 37.0 in (94 cm)
  • Overall Length: 76.0 in (193 cm)
  • Overall Length: 76.0 in (193 cm)
  • Overall Width: 34.5 in (87.6 cm)
  • Overall Width: 34.5 in (87.6 cm)
  • Parking Brake: Hand Lever, Mechanical Rear Brakes
  • Parking Brake: Hand Lever, Mechanical Rear Brakes
  • Power Source: 36-Volt DC
  • Power Source: 36-Volt DC
  • Rear Axle Ratio: 29.88:1
  • Rear Suspension: Coil springs with Hydraulic Shock Absorber
  • Rear Suspension: Coil Springs with Hydraulic Shock Absorber
  • Rear Wheel Track: 29.7 in (75.4 cm)
  • Rear Wheel Track: 29.7 in (75.4 cm)
  • Seating Capacity and Style: 1 person
  • Seating Capacity and Style: 1 person
  • Service Brake: 2 Wheel Hydraulic, Drum; Front Wheel Optional
  • Service Brake: 2 Wheel Hydraulic, Drum; Front Wheel Optional
  • Speed (level ground): up to 7.8 mph (12.6 kmh)
  • Speed (level ground): up to 6.0 mph (9.6 kmh)
  • Speed Controller: 300 Amp Programmable. SRO Capable
  • Speed Controller: 300 Amp Programmable. SRO Capable
  • Standard Color: Safety Yellow
  • Standard Color: Safety Yellow
  • Steering: Handlebar. Optional steering wheel
  • Steering: Handlebar. Optional steering wheel
  • Towing Capacity: up to 8000 lb (3636 kg)
  • Towing Capacity: up to 5000 lb (2267 kg)
  • Vehicle Load Capacity: 650 lb (295 kg)
  • Vehicle Load Capacity: 650 lb (295 kg)
  • Wheel Base: 52.5 in (133.4 cm)
  • Wheel Base: 52.5 in (133.4 cm)
