Drexel Explosion Proof Forklift

The Landoll Drexel FL40AC-EX and FL60AC-EX are explosion proof, electrically powered, front loading, 4-wheel electric forklifts with independently driven front wheel drive and rear wheel steering. The EX range is UL listed for operation in Type EX Class I, Division I, Group D and Class II, Division I, Group G flammable hazardous areas. The Capacities are available in 4,000 lbs. (1818kg) and 6,000 lbs. (2727kg) with two, three and four stage masts for lift heights to 250" (6.35M). AC motors and controls make the EX range efficient and easy to maintain.

Features
  • Automatic Return to Neutral, Overhead Guard
  • Four-Wheel Configuration - Front Wheel Drive
  • Static Grounded Steer Tires
  • Seatbelt (Retractable)
  • 36 Volt System
  • Fire Extinguisher and Electric Horn
  • Anderson Type N 150 Amp EX Connector
  • Class III 36
  • Emergency Power Disconnect Switch
  • Battery Discharge Indicator with Lift Interrupt
  • 42
  • Hydrostatic Power Steering
  • RFI Suppressed to MIL-STD-461 (Class III C)
  • Spring Applied Parking Brake on Front Wheels
  • Curtis AC Traction/Hydraulic Controllers
  • Regenerative Service Brakes
  • 48
  • Battery Height: 48 in / 121 cm
  • Capacity: 4000 lbs / 1814 kg
  • Center Grade Clearance: 12 degrees
  • Fork Carriage Width: 36 in / 91 cm
  • Fork Size (Standard) ITA Class III: 2x4x42 in 5x11x107 cm
  • Gradeability: 15%
  • Lift Speed: 34 fpm / 10 mpm
  • Load Backrest Height: 48 in / 122 cm
  • Lost Load Center: 19 in/ 49 cm
  • Lowering Speed : 56 fpm / 17 mpm
  • Mast Tilt: 3 / 4 degrees
  • Overall Length Loaded: 87 in / 221 cm
  • Overall Length to Face of Forks: 87 in / 221 cm
  • Overall Width: 43 in / 109 cm
  • Overhead Guard Height: 84 in / 213 cm
  • Overhead Guard Width: 40 in / 102 cm
  • Rear Grade Clearance: 15 degrees
  • Rear Overhang: 20 in / 51 cm
  • Seat Clearance: 39 in / 99 cm
  • Travel Speed: 4 mph / 6 kph
  • Truck Weight: 7700 lbs / 3493 kg
  • Turning Radius: 85 in / 216 cm
  • Underclearance: 5 in / 13 cm
  • Wheel Sizes: 18x8x12.1 in 46x20x31 cm
  • Wheel Sizes: 16.2x6x11.2 in 41x15x29 cm
  • Wheelbase: 48 in / 122 cm

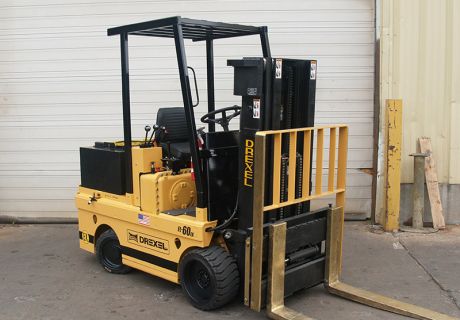

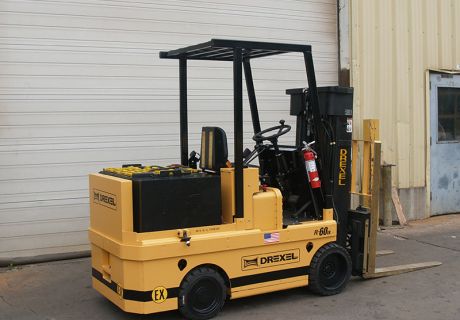

Photos
Overview
Drexel Explosion Proof Forklift

The Landoll Drexel FL40AC-EX and FL60AC-EX are explosion proof, electrically powered, front loading, 4-wheel electric forklifts with independently driven front wheel drive and rear wheel steering. The EX range is UL listed for operation in Type EX Class I, Division I, Group D and Class II, Division I, Group G flammable hazardous areas. The Capacities are available in 4,000 lbs. (1818kg) and 6,000 lbs. (2727kg) with two, three and four stage masts for lift heights to 250" (6.35M). AC motors and controls make the EX range efficient and easy to maintain.

Features
Features
  • Automatic Return to Neutral, Overhead Guard
  • Four-Wheel Configuration - Front Wheel Drive
  • Static Grounded Steer Tires
  • Seatbelt (Retractable)
  • 36 Volt System
  • Fire Extinguisher and Electric Horn
  • Anderson Type N 150 Amp EX Connector
  • Class III 36
  • Emergency Power Disconnect Switch
  • Battery Discharge Indicator with Lift Interrupt
  • 42
  • Hydrostatic Power Steering
  • RFI Suppressed to MIL-STD-461 (Class III C)
  • Spring Applied Parking Brake on Front Wheels
  • Curtis AC Traction/Hydraulic Controllers
  • Regenerative Service Brakes
  • 48
Specs
  • Battery Height: 48 in / 121 cm
  • Capacity: 4000 lbs / 1814 kg
  • Center Grade Clearance: 12 degrees
  • Fork Carriage Width: 36 in / 91 cm
  • Fork Size (Standard) ITA Class III: 2x4x42 in 5x11x107 cm
  • Gradeability: 15%
  • Lift Speed: 34 fpm / 10 mpm
  • Load Backrest Height: 48 in / 122 cm
  • Lost Load Center: 19 in/ 49 cm
  • Lowering Speed : 56 fpm / 17 mpm
  • Mast Tilt: 3 / 4 degrees
  • Overall Length Loaded: 87 in / 221 cm
  • Overall Length to Face of Forks: 87 in / 221 cm
  • Overall Width: 43 in / 109 cm
  • Overhead Guard Height: 84 in / 213 cm
  • Overhead Guard Width: 40 in / 102 cm
  • Rear Grade Clearance: 15 degrees
  • Rear Overhang: 20 in / 51 cm
  • Seat Clearance: 39 in / 99 cm
  • Travel Speed: 4 mph / 6 kph
  • Truck Weight: 7700 lbs / 3493 kg
  • Turning Radius: 85 in / 216 cm
  • Underclearance: 5 in / 13 cm
  • Wheel Sizes: 18x8x12.1 in 46x20x31 cm
  • Wheel Sizes: 16.2x6x11.2 in 41x15x29 cm
  • Wheelbase: 48 in / 122 cm
